Vmc850 Cnc Vertical Machining Center - China

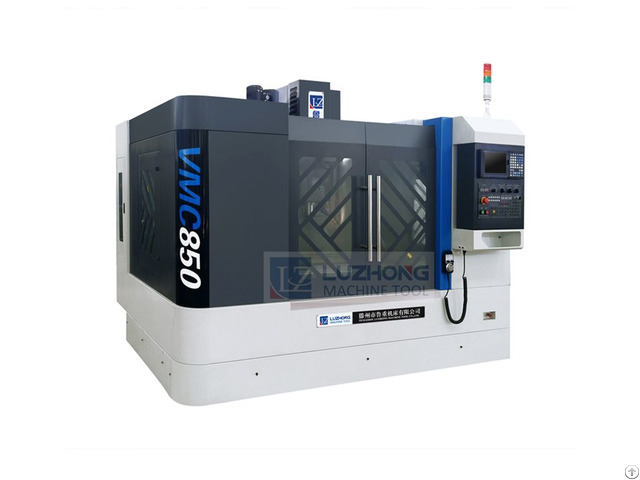

VMC850 CNC Vertical Machining Center

CNC Machining Center

CNC Machining Center Manufacturer China

Features:

High quality resin sand

Taiwan spindle

Taiwan ball screw and locking nut

Taiwan pressure cylinder

Japanese NSK bearing germany R+W coupling

Automatic lubrication system

Chip conveyor at optional

Application:

This VMC is suitable for mechanical processing and mold making .

And it can asapt to the processing requirement from rough machining to finish machining .

It can also finish many working procedures like milling, drilling, tapping, boring, etc.

Product main technical parameters:

specifications unit VMC850

Table size mm 1000x500

X axis travel mm 800

Y axis travel mm 500

Z axis travel mm 500

Distance between spindle

center and column surface mm 571

Distance between spindle nose

and table surface mm 150-650

T slot 3-18*90

Spindle taper mm BT40

Max.

spindle speed r/min 8000(10000 optional)

Main motor power kw 7.5

X/Y/Z axis servo motor torque N.

M 15/15/18

X/Y/Z motor connection direct

X/Y/Z guide rail form 3 axis linear guide rail

Max.

table load kg 500

Automatic tools changer 16 Armless type(optional: 24 arm type)

Max.

tool weight kg 8

Max.

tool length mm 250/350

Max.

tool diameter mm 100(Adjacent)/150(Apart)

X/Y/Z axis rapid traverse M/min 24/24/20

Cutting feed speed M/min 10

Position accuracy mm ±0.005

Repeat positioning accuracy mm ±0.003

Machine dimension mm 2800x2300x2700

Machine weight kg 5500
