Vertical Plastic Injection Molding Machine Dvc 850ds - China

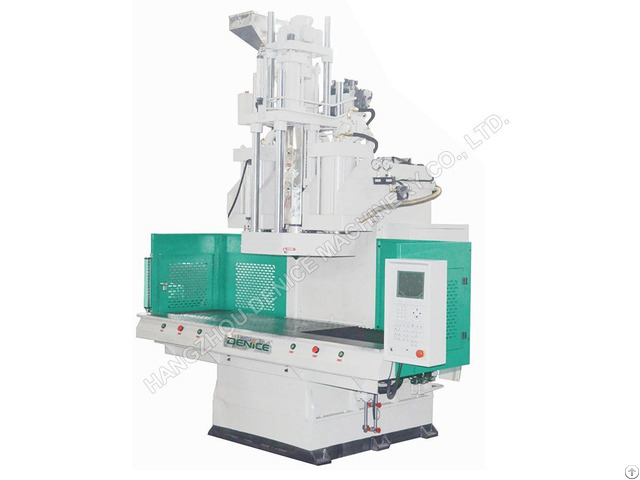

vertical plastic injection molding machine DVC-850DS

Clamping force : 45Ton-120Ton

·Injection weight : 97-415g

·Vertical clamping and horizontal injection design

·Rigid C-frame Tie-bar less design, suitable for over molding or insert molding process and multi-purpose injection molding process

Specification

Model Unit DC-850DS

( Injection Unit ) Screw diameter mm Ф36 Ф40 Ф45 Maximum injection pressure Kg/cm2 1620 1313 1037 Theoretical shot volume cm3 163 201 254 Maximum shot weight g/Oz 150(5.3) 186(6.6) 235(8.3) Injection rate cm3/sec 103 128 161

( Clamping Unit ) Clamping force ton 85 Minimum mold thickness mm 200(Can be customized according to customer requirements) Opening stroke mm 270 Open daylight mm 470(As required) Nozzle Center Height mm 170±20 Nozzle Center Distance mm 95 Ejector force T 1.1(Can be customized according to customer requirements) Ejector stroke mm 88

( Others ) Sliding Table Size mm 1100 × 390 Sliding Table Stroke mm 570 Pump motor power Kw 11 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 7.45 Total wattage Kw 18.45 Oiltank capacity L 310 Machine weight (approx.

) T 5.6 Machine dimensions(approx.

) m 3.0×1.9× 2.8 Specification of vertical plastic injection molding machine Model Unit DC-1200DS

( Injection Unit ) Screw diameter mm Ф46 Ф52 Maximum injection pressure Kg/cm2 2193 1716 Theoretical shot volume cm3 365 467 Maximum shot weight g/Oz 325(11.4) 415(14.6) Injection rate cm3/sec 123 157

( Clamping Unit ) Clamping force ton 120 Minimum mold thickness mm 250(Can be customized according to customer requirements) Opening stroke mm 300 Open daylight mm 550(As required) Nozzle Center Height mm 200±20 Nozzle Center Distance mm 95 Ejector force T 4.6(Can be customized according to customer requirements) Ejector stroke mm 88

( Others ) Sliding Table Size mm 1250x495 Sliding Table Stroke mm 650 Pump motor power Kw 10.4 Hydraulic system pressure Kg/cm2 25.4 Barrel heating power Kw 480 Total wattage Kw 4.6 Oiltank capacity L 90 Machine weight (approx.

) T 11.6 Machine dimensions(approx.

) m 3.6×2.2× 2.8

Company Contact:

• Posted By: Hangzhou Denice Machinery Co.,Ltd

• Phone: 86-571-63501868

• Address: Shangguan Xiang Special Industrial Zone ,Fuyang District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.denice.com.cn/

• Business Description: Hangzhou DENICE Machinery Co., Ltd. is one of the most professional manufacturers of vertical injection molding machines in China.

  The company specializes in the production of high quality and high precision vertical injection molding machines that the clamping force is from 15 tons - 650 tons, and the injection volume is from 35 grams, 8000 grams.

  We have standard series machine, single slide plate series, double slide plate series and rotary table series injection molding machine.

  In addition, to improve the work efficiency and to the different needs of customers in different industry, we have special offer special machine with industry characteristics, such as: Special machines for golf, High-speed & high pressure plastic injection machines, J series energy-saving plastic injection machines, Liquid silicon rubber plastic injection machines(LSR), BMC, Bakelite injection molding machines, bi-color (multicolor) injection molding machines, APC series full automatic belt molding machines, and so on.

  Our products are widely used in automobile manufacturing, medical equipment industry, cosmetics industry, cutting tools, sanitary ware, furniture, toys, daily necessities, baby supplies, electronic connectors, optical lenses, back plate, watch movement gears, soles, color plate, hose and hard tube, and so on.

  Uphold the quality first, service customers, innovation management concept, our company continues to improve ourselves, constantly improve the quality of service, and create best value for our customers.
