Vertical Facing And Centering Machine Vz820550 - China
price: contact company for price

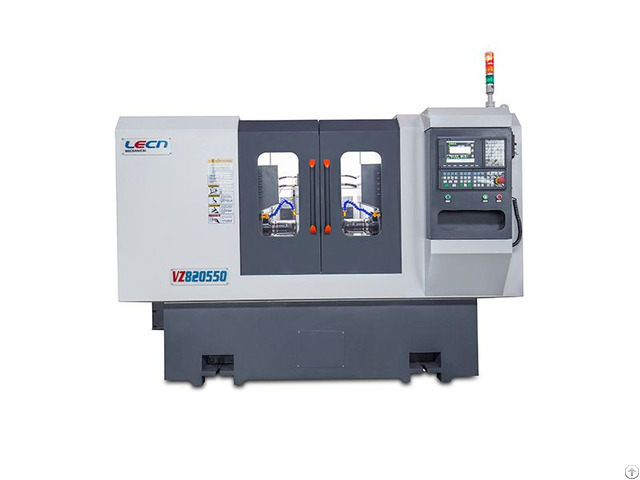

Vertical Facing And Centering Machine VZ820550
Product Description
Both ends of the one clamping are processed at the same time, the vertical facing and centering machine with 100-500 mm workpiece length is suitable for milling, chariot, drilling center hole, drilling, tapping, boring, reaming, grooving package of all kinds of slender, irregular and stepped parts.
High coaxiality, high efficiency, it can carry with truss or joint robot and automatical line.
Technical Parameters
ITEM VZ820550
Clamping Diameter Scope, mm Ø15-Ø50
Workpiece Length Scope, mm 100-500
Max Center Drilling Clamping Diameter, mm Ø16
Max Milling Amount(One Side), mm 4
Company Contact:
- Posted By: Lecn Anhui Co., Ltd
- Phone: 86-0566-2610088
- Address: No. 58, Tonggang Avenue, Guichi Industrial Park, Chizhou , Anhui , China
- Email:
- Website: https://www.lecn.com.cn
Published date: November 12, 2024
- Business Description: LECN headquartered in Chizhou, Anhui Province, is located in the Yangtze River Delta Urban Agglomeration.
Since its founding on the beautiful Yuhuan Island in 2003, it has been focusing on the research and development of high-efficiency special aircraft for shaft parts and the exploration of comprehensive solutions.
LECN marketing and after-sales network covers major industrial towns and manufacturing agglomeration areas in China, and has permanent representative offices in Korea, Japan, Britain, Russia, Southeast Asia and other countries and regions.
As one of the important members in the field of domestic equipment, LECN team, with the spirit of diligent knowledge and continuous innovation, has opened the pioneer of customization of special aircraft and standardization of industrial machine tools in many fields such as spline forming and constant velocity universal joint manufacturing.
