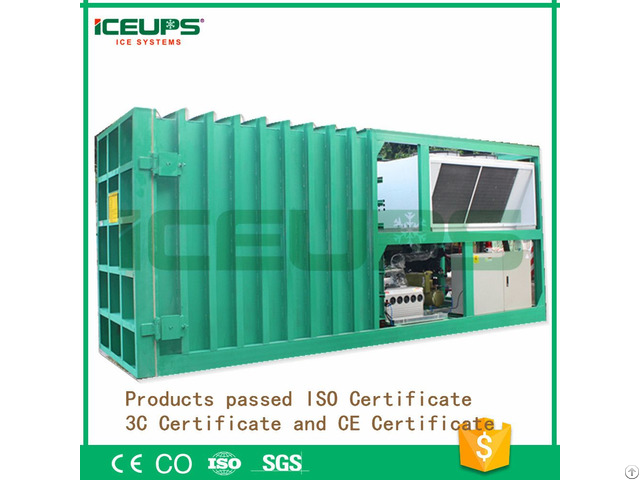

Vegetable Vacuum Precooling Machine Kms 1p - China
price: 22100.00 Dollar US$
Specifications
Condition: New
Place of Origin: Guangdong, China (Mainland)
Brand Name: ICEUPS
Model Number: KMS-01P
Type: Dehydrator
Voltage: 380v/50hz/3p or others
Power(W): 31.2kw
Weight: 5200kg
Dimension(L*W*H): 3560x 2092x2200mm
Certification: CE/ISO90 01
Warranty: 15months after B/L date
After-sales Service Provided: Engineers available to service machinery overseas
Name: China manufacture vacuum cooler with aluminum radiator core
Application: quickest cooling for vegetables, fruits, flowers
processing time: 20~30minutes
Chamber Material: stainless steel or painted
temperature after processing: up to 1°C
Vacuum Pump brands: Busch or Leybold
cooling mode: air cooling, water cooling or evaporative cooling
Door type of vacuum chamber: Upward lifting, Horizontal sliding and Manual operating
Refrigerant: R22 or R404a 1 - Vacuum Cooler is the quickest and most cost-effective cooling system for vegetable, fruits, flowers & more.
2 - Vacuum cooler, which can strongly improve your product quality and at the same time reduce your cooling costs, is now becoming an acceptable investment for almost all vegetable growers! 3 - Vacuum Cooler cools fresh product quickly and uniformly in large loads within 15-30mins/cycle, also suitable for packed produces.
ICEUPS will design and offer the most suitable machine to clients'requirements:
* Vacuum Cooler Machine Condenser System Type:
1) Air condenser: The simplest construction, suitable for small system.
Easy to integrate.
2) Water condenser: Low cost, efficient and easy to install.
Perfect for most districts climates.
3)Evaporative condenser: Optional system for dry climates, or if water availability is limited.
*Door type of Vacuum Cooler Machine
1) Standard swing door: The simplest construction, manual operation.
The ramp for this system is relatively long, and is mounted inside the cooling chamber.
2)Horizontal sliding door: This eletrical driven door is optimal if the cooling skid is placed, besides the vaccum chamber (one pallet modle and more than 6 pallets systems).
3)Upward lift door: Suggested solution for all systems from 2-6 pallets.
Easy installation, easy ramp construction.
Technical parameter of Vacuum Cooler:
ICEUPS standard range consists of models: 1pallet up to 10 pallets, and produce weight ranging from 300 to 5, 000 kg.
The number of pallets defines the chamber dimensions, and the number of vacuum pumps needed to create the vacuum.
MODELS and SPECIFICATION OF VACUUM COOLER for Vegetable/Fruits/Flowers
Model No.
/Processing Capacity/ Inside Dimension of Chamber(mm)/ Cooling capacity /Power Supply/ Total Power
1 - KMS-01P, 1 pallet/300~500kg, Chamber 1400x1400x2200, 60kw, 220~600v/3P, 31.2kw
2 - KMS-02P, 2pallets/700~1000kg, Chamber 2600x1400x2200, 88.5kw, 220~600v/3P, 47.4kw
3 - KMS-03P, 3pallets/1100~1500kg, Chamber 3900x1400x2200, 113kw, 220~600v/3P, 58.7kw
4 - KMS-04P, 4pallets/1500~2000kg, chamber 5200x1400x2200, 163kw, 220~600v/3P, 82.7kw
5 - KMS-06P, 6pallets/2200~3000kg, chamber 6500x1400x2200, 206kw, 220~600v/3P, 104kw
6 - KMS-08P, 8pallets/3000~4000kg, chamber 5300x2600x2200, 293kw, 220~600v/3P, 137kw
7 - KMS-10P, 2Aircraft pallets/4000~5000kg, chamber 6600x2600x2200, 478kw, 220~600v/3P, 249.5kw
