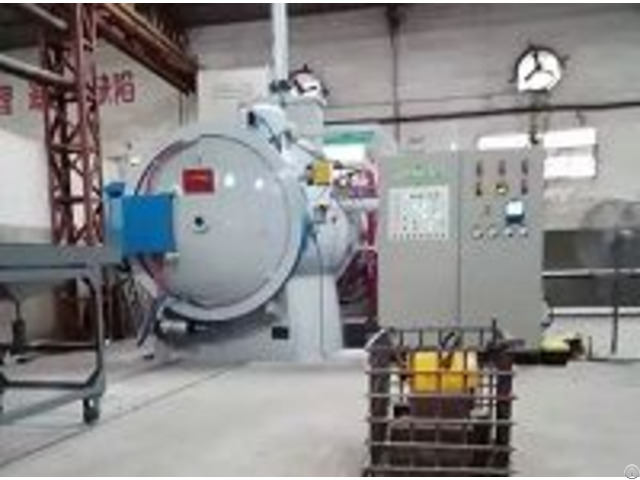

Vacuum Oil Quenching Furnace - China
price: 1.00 Dollar US$
Technical Features
Horizontal, double chamber structure, circular heating chamber structure; feeding and discharging mechanism; double paddle structure, using frequency conversion speed control method to control feeding and discharging smoothly, rapidly and reliably; oil mixing system: frequency conversion control motor drive agitator, guide plate can promote the reasonable circulation flow of vacuum quenching oil, improve the cooling capacity of quenching oil.
It has a patented temperature thermocouple feeding device and a patented temperature control thermocouple double-layer sealing structure.
Specifications
Type Working Zone size(mm) Capacity(kg) Heating Power(KW) Max.
Temp(℃) Temp.
uniformity Max.
vacuum(Pa) Pressure risingrate(Pa/h) Air cooling pressure
VGQK-280 1200x1000x900 2500 280 1200 ≤±5 4x10-1 ≤0.65 6
VGQK-450 2000x1200x700 4000 450 1200 ≤±5 4x10-1 ≤0.65 6
VGQV-150 Ф600x800 250 150 1320 5 4x10 -1 or 4x10-3 ≤0.65 6
VGQMV-300 Ф600x1200 1200 300 1320 5 4x10 -1 or 4x10-3 ≤0.65 6
VGQMV-360 Ф1000x1000 1000 360 1320 5 4x10 -1 or 4x10-3 ≤0.65 6
VGQMV-420 Ф1000x1200 1000 420 1320 5 4x10 -1 or 4x10-3 ≤0.65 6
VGQV-200 Ф1000x1200 1000 200 1320 5 4x10 -1 or 4x10-3 ≤0.65 6
VGQV-450 Ф1000x2500 1500 450 1320 5 4x10 -1 or 4x10-3 ≤0.65 6
VGQMV-450 Ф1600x2000 2500 450 1320 5 4x10 -1 or 4x10-3 ≤0.65 6
Company Contact:
- Posted By: Shanghai Haoyue Technology Co., Ltd.
- Phone: 13917898272
- Address: NBuilding B2, 7301 Jiasong North Road, Jiading District, Shanghai , Shanghai Shi, China
- Email:
- Website: https://www.haoyuefurnace.com/
Published date: October 22, 2021
- Business Description: Shanghai Haoyue Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and sales of electric furnace.
Our company is located in Shanghai, the center of China's economy and technology.
It has large-scale modern standard plant, complete set of processing equipment and perfect quality inspection system.
It has gathered a number of technical elites who have been engaged in the manufacture and service of heat treatment furnace, vacuum furnace and special furnace for a long time.
Among them, there are 26 engineering and technical personnel with graduate degree or above, and more than 65 technical workers The annual production capacity of 100 sets of heat treatment furnace and 60 sets of large vacuum furnace is prepared.
