Two Way Piggyback Type Agv - China

Two-way Piggyback Type AGV automated guided vehicle agv piggyback agv laser guided vehicle The two-way piggyback type AGV is equipped with a power roller, which can be operated in both directions.

It can be flexibly applied to narrow passages, and can be seamlessly connected with the customer dispatching system.

The roller-carrying material is connected with the line-side roller to realize automatic loading and unloading.

The use of magnetic navigation technology, simple construction, cost-effective, can carry 100KG ~ 2T cargo.

Product Description

Automatic guided transport vehicle-introduction

Automated Guided Vehicle-AGV (Automated Guided Vehicle) refers to a transport vehicle equipped with electromagnetic or optical automatic guidance devices that can travel along a prescribed guide path, with safety protection and various transfer functions.

AGV belongs to The category of Wheeled Mobile Robot (WMR-Wheeled Mobile Robot).

A truck that does not require a driver in industrial applications, and uses a rechargeable battery as its power source.

Generally, it can be controlled through a computer to control its travel route and behavior, or use an electromagnetic path-following system to set up its travel path.

The electromagnetic track is glued to the floor, and the driverless follows the electromagnetic track.

The message carries the transporter that moves and moves.

The automatic guided transport vehicle-the guidance method of AGV

1 - Electromagnetic induction guidance.

The electromagnetic field formed by the low-frequency guide cable and the electromagnetic sensing device are used to guide the operation of the unmanned guided vehicle.

2 - Laser guidance.

The laser scanner is used to identify several fixed signs set in its range of motion to determine its coordinate position, thereby guiding the operation of the AGV.

3 - Magnet-gyro guidance.

Use a special magnetic position sensor to detect small magnets installed on the ground, and then use gyroscope technology to continuously control the running direction of the unmanned truck.

Let robot smarter service for world.

AGV customized electric remote control rail transfer car is designed for transporting heavy cargoes or equipment from one bay to anther in factory, It can be used indoor or outdoor the fields include metallurgy, foundry, new factory construction and ship building and soon with different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.

Product introduction

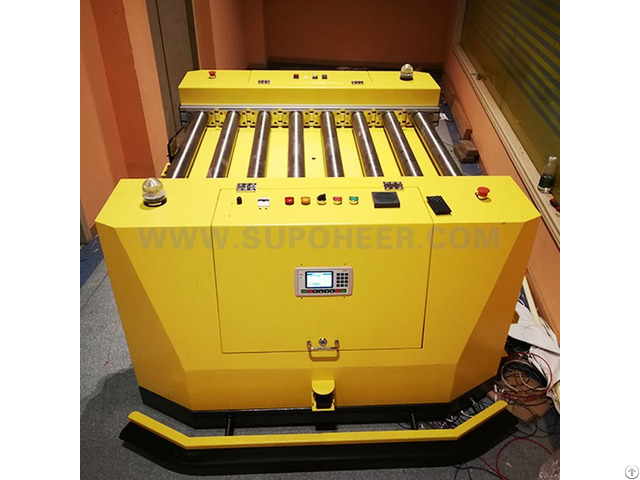

The two-way piggyback type AGV is equipped with a power roller, which can be operated in both directions.

It can be flexibly applied to narrow passages, and can be seamlessly connected with the customer dispatching system.

The roller-carrying material is connected with the line-side roller to realize automatic loading and unloading.

The use of magnetic navigation technology, simple construction, cost-effective, can carry 100KG ~ 2T cargo.

Automated Guided Vehicle Features

1 - Two-way operation, can carry 100KG~2000KG goods

2 - Carrying materials, can realize automatic docking and loading with the line edge roller

3 - Equipped with magnetic navigation landmarks for site docking

4 - Safety protection is more in place, 270° obstacle avoidance security Product Technical Parameters

Dimensions (mm) 2200*1300*800

Navigation type Magnetic navigation

Drive mode Differential wheel / steering wheel

Direction of travel Forward/Turn/Back

specified load (kgs) 100~2000

Running speed (m/mins) 6~60

Power supply Lithium battery / lead acid battery

charging mode Automatic online/manual offline

Turning radius(mm) R1200

Guidance accuracy(mm) ±10

Stop accuracy(mm) ±10

Operation method Automatic/manual remote control
