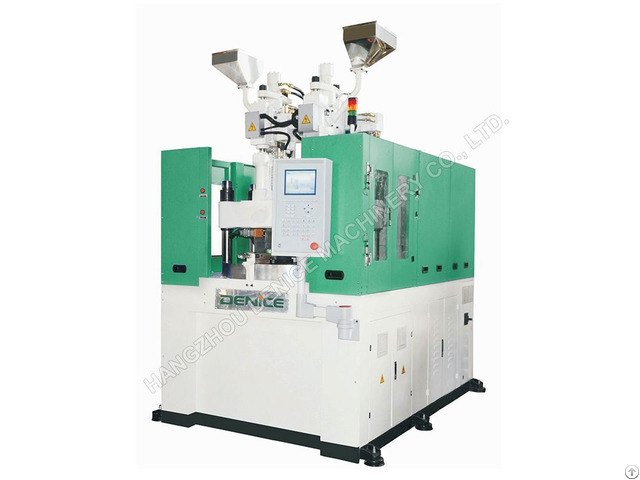

Two Color Injection Molding Machine Dv 850 3r 2c Ce - China

two color injection molding machine DV-850.3R.

2C.

CE

The CE series DENICE:

approved by the European Union, equipment collection area is designed with ergonomic design.

The safety protection devices in all parts are effective in preventing accidental accidents.

Multi station rotary table machine, facilitates the operation of staff, two injection units two palstic material design

Specification of DENICE injection molding machine

Model Unit DV-850.2R

( Injection Unit ) Screw diameter mm Ф36 Ф42 Ф46 Ф48 Maximum injection pressure Kg/cm2 2074 1523 1270 1166 Theoretical shot volume cm3 162 221 266 289 Maximum shot weight(PS) g/Oz 150(5.3) 203(7.1) 245(8.7) 266(9.4) Injection rate cm3/sec 88 120 134 157

( Clamping Unit ) Clamping force ton 85 Rotary Table Diameter mm 1200 tie bar distance mm - Minimum mold thickness mm 200/300(Can be customized according to customer requirements) Opening stroke mm 250 Open daylight mm 450/550(As required) Ejector force T 2.7(Can be customized according to customer requirements) Ejector stroke mm 70

( Others ) Pump motor power Kw 15 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 7 Total wattage Kw 22 Oil tank capacity L 550 Machine weight (approx.

) T 4.7 Machine dimensions(approx.

) m 2.6×2.0× 3.1

Company Contact:

• Posted By: Hangzhou Denice Machinery Co.,Ltd

• Phone: 86-571-63501868

• Address: Shangguan Xiang Special Industrial Zone ,Fuyang District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.denice.com.cn/

• Business Description: Hangzhou DENICE Machinery Co., Ltd. is one of the most professional manufacturers of vertical injection molding machines in China.

  The company specializes in the production of high quality and high precision vertical injection molding machines that the clamping force is from 15 tons - 650 tons, and the injection volume is from 35 grams, 8000 grams.

  We have standard series machine, single slide plate series, double slide plate series and rotary table series injection molding machine.

  In addition, to improve the work efficiency and to the different needs of customers in different industry, we have special offer special machine with industry characteristics, such as: Special machines for golf, High-speed & high pressure plastic injection machines, J series energy-saving plastic injection machines, Liquid silicon rubber plastic injection machines(LSR), BMC, Bakelite injection molding machines, bi-color (multicolor) injection molding machines, APC series full automatic belt molding machines, and so on.

  Our products are widely used in automobile manufacturing, medical equipment industry, cosmetics industry, cutting tools, sanitary ware, furniture, toys, daily necessities, baby supplies, electronic connectors, optical lenses, back plate, watch movement gears, soles, color plate, hose and hard tube, and so on.

  Uphold the quality first, service customers, innovation management concept, our company continues to improve ourselves, constantly improve the quality of service, and create best value for our customers.
