Two Axis Position Rate Turntable - China

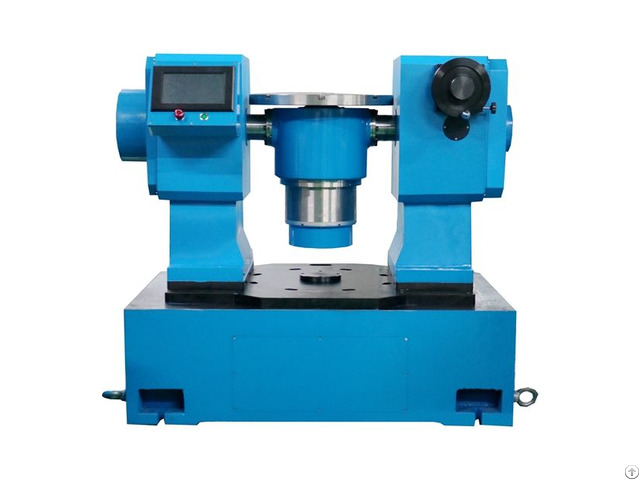

Two-Axis Position Rate Turntable Inner Axis(azimuthal)

Outer Axis(pitch) Function This device has the function of position and rate, it can provide the benchmark of precise single and two axis positioning and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.

Axis Orientation Horizontal(UT) Payload Weight 5-40kg Dimension of Table Surface 200-500(mm) Magnetic Leakage ≤2 Gauss(20mm from the table surface) Material of The Table Stainless Steel Table flatness 0.015mm Table Wobble 0.02mm Perpendicularity of Two-Axis ±3″ Motion Error of Axis ±2″ ±3″ Angular freedom Continuous Continuous Position Accuracy ±2″ ±3″ Position Resolution 0.5″ 0.5″ Rate Range ±0.005°/s~±600°/s ±0.005°/s~±400°/s Rate Resolution 0.001°/s 0.001°/s Peak Acceleration 300°/s2 200°/s2 Conductive Slipring 40 rings/3A Remote Control Interface RS232/RS422 Other The remote control interface can be adjusted by user’s requirements；

The quantity of conductive slip ring can be adjusted by user’s requirements；

The dimension of table can be adjusted by user’s requirements；

Technical parameter can be adjusted by user’s requirements.
