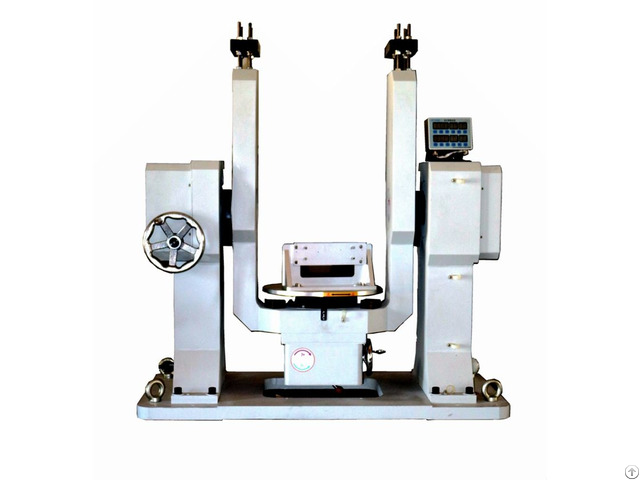

Two Axis Digital Display Manual Turntable - China
price: 1.00 Dollar US$
Two-Axis Digital Display Manual Turntable Inner Axis(azimuthal)
Outer Axis(pitch) Function This device has the function of position and manual operation, it can provide the benchmark of precise single and two axis positioning for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.
Axis Orientation Horizontal(UT) Payload Weight 5-50kg Dimension of Table Surface 200-600(mm) Magnetic Leakage ≤2 Gauss(20mm from the table surface) Material of The Table Stainless Steel Table flatness 0.015mm Table Wobble 0.02mm Perpendicularity of Two-Axis ±3″ Motion Error of Main Axis ±2″ ±3″ Angular freedom Continuous ±100° Position Accuracy ±2″ ±3″ Position Resolution 1″ 1″ Conductive Slipring 40 rings/3A Other The quantity of conductive slip ring can be adjusted by user’s requirements；
The dimension of table can be adjusted by user’s requirements；
Technical parameter can be adjusted by user’s requirements.
Company Contact:
- Posted By: Wuhan Skyline Control Co., Ltd.
- Phone: 13343458811
- Address: Building A1, Hangyu Area 2, Wuhan University Science Park, East Lake High-Tech Development Zone, Wuh, wuhan , hubei , China
- Email:
- Website: http://www.skyline-control.com/
Published date: June 21, 2019
- Business Description: Skyline is a provider of systems and solutions in inertial navigation, stabilization, guidance and control for defense, simulation system integration, motion simulation equipment, industrial automation system device, hydraulic and pneumatic mechanical components, aircraft ground detection instruments, computer software and hardware, special aerospace equipment applications.
