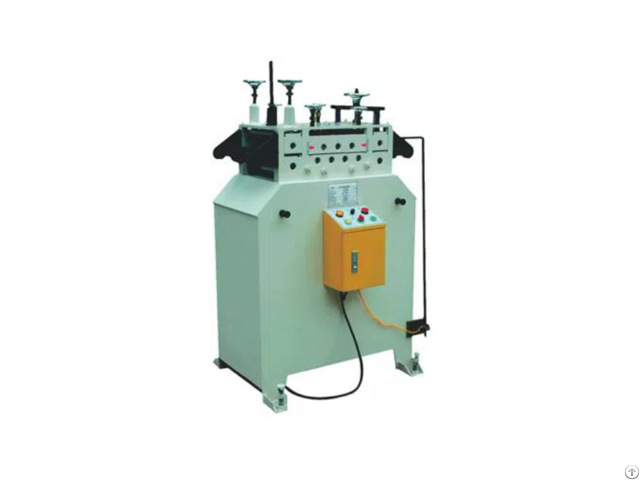

Thick Sheet Levellers - China
price: check with company for price
It's hard to produce good quality products if the roll material does not clear up the inner stress.
The only way to make the better electric product is go through the leveller to remove the inner stress.
After levelling, material can be corrected upward or downward of the flat.
This is the most important meaningful of the levelling machine.
Specification of Thick Sheet Leveller Machine Model: TL Coil width up to 600mm Material thickness: 0.4-2.2mm Line speed: 15m/min Levelling roller material: GCr15 Levelling roller hardness: HRC60±2 Features of Thick Sheet Leveller Machine 1) Heavy duty fabricated bases 2) Independent height adjustment of rolls 3) Entrance side pinch rolls 4) AC variable speed drives 5) Individual use, or run with de-coiler or double head de-coiler for better performance.
Be able compatible with other feeders 6) Suitable for progressive production if punching with 0.5-6.0mm material thickness in hard ware or electronic blank
Company Contact:
- Posted By: Fanty Machinery
- Phone: +8618244978620
- Address: xili street,yiben building, shenzhen , China
- Email:
- Website: https://www.decoilerfeeder.com
Published date: March 24, 2022
- Business Description: We provide high quality uncoiling, leveling, feeding and punch equipment to help many local factories realize the importance of automation production, and more and more factories upgrade and improve their metal stamping line.
◇ Our Product
Decoiler machine
Light duty de-coiler
Heavy duty de-coiler
Double end decoiler
Bilateral unwinding device
Straightener machine
Precision straightener
Coil feeder machine
Air feeder
High speed roll feeder
NC servo roll feeder
Gear feeder
Gripper feeder
De-coiler straightener machine 2 in 1
Uncoiler leveler and feeder machine 3 in 1
High speed press machine
Pneumatic press machine
◇ Product Application
Metal stamping parts, auto stamping parts, rotor and stator stamping and laminations, button production.
