Thermosetting Injetion Molding Machine Dk 2100s - China

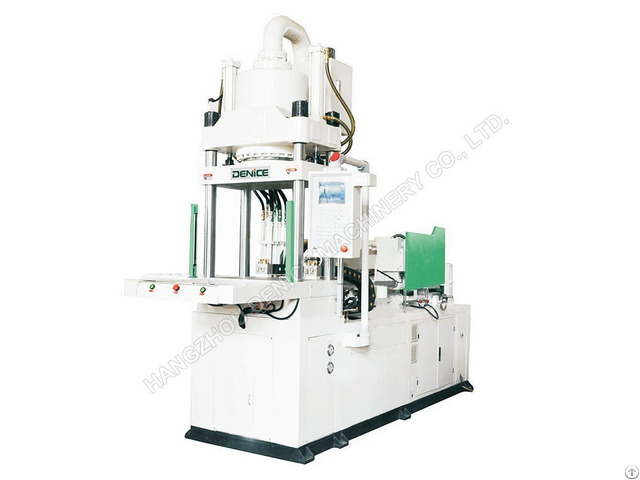

thermosetting injetion molding machine DK-2100S

· DK Series

· Vertical type four column clamping, horizontal injection, convenient to put and take out the items.

· Strong mechanical structure, high pressure, high speed, fit for large inserts plastic product molding.

· Optional: Single slide table series injection machine, increase production efficiency and safety of the operators.

· Humanization design of the height of the work plate and slide table, rotary table, let the mold install and unload more conveniently, increase production efficiency effectively.

We are vertical injection moulding machine manufacturers.

Specification

Model Unit DK-1600S

( Injection Unit ) Screw diameter mm Ф45 Ф50 Ф55 Maximum injection pressure Kg/cm2 2291 1856 1534 Theoretical shot volume cm3 381 471 570 Maximum shot weight g/Oz 340(11.9) 420(14.8) 509(17.9) Injection rate cm3/sec 127 157 190

( Clamping Unit ) Clamping force ton 160 Sliding Table size mm 440 × 700 Sliding Table Stroke mm 700 tie bar distance mm 460× 600 Minimum mold thickness mm 250(Can be customized according to customer requirements) Opening stroke mm 350 Open daylight mm 600(As required) Nozzle Center Height mm 175±20 Nozzle Center Distance mm 125 Ejector force T 4.0(Can be customized according to customer requirements) Ejector stroke mm 75

( Others ) Pump motor power Kw 18.5 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 10.7 Total wattage Kw 29.2 Oiltank capacity L 500 Machine weight (approx.

) T 8.5 Machine dimensions(approx.

) m 4.1×1.5× 3.0
