Tck6340s Slant Bed Cnc Lathe Machine - China

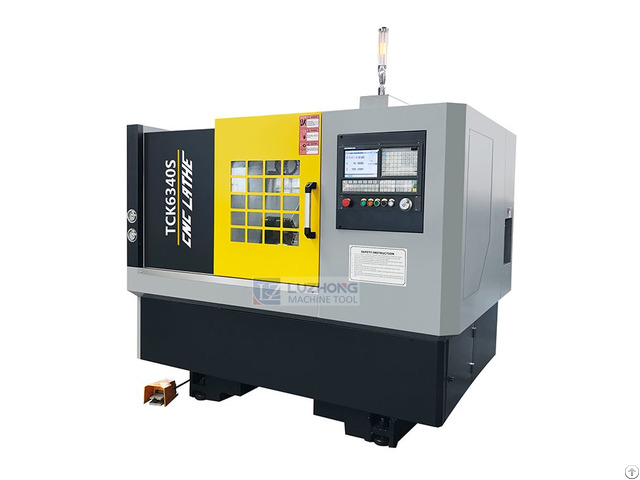

TCK6340S Slant Bed CNC Lathe Machine

Slant Bed CNC Lathe Machine

CNC Lathe Machine

Application：

This machine is applicable to automobile, motorcycle, electronics, aerospace, military, oil and other industry.

It could turn the conical surface, circular arc surface, end face of the rotary parts, could also turn various

metric and inch threads etc, with higher efficiency and higher precision in bulk.

The main performance characteristics：

1.45 degrees slant bed CNC lathe

2 - Higher accuracy Taiwan linear

3 - Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back

4 - Screw pre-stretching structure

5 - Gang type tool post

Product main technical parameters:

Specification Unit TCK6340S

Max.

swing over bed mm 400

Max.

swing over cross slide mm 140

Max.

processing length mm 400(gang type)/300(turret)

X/Z axis travel mm 400/500

Spindle unit mm 140

Spindle nose A2-5

Spindle bore mm 48

Spindle speed rpm 4000

Chuck size inch 6

Spindle motor kw 5.5

X/Z repeatability mm ±0.003

X/Z axis feed motor torque N.

m 6/6

X/Z rapid traverse m/min 18/18

Tool post type Gang type tool post(Turret as optional)

Cutting tool shape size mm 20*20

Guide form 45° inclined guide rail

Total power capacity kva 9/11

Machine dimension (L*W*H) mm 2300*1500*1750

N.W. KG 2500
