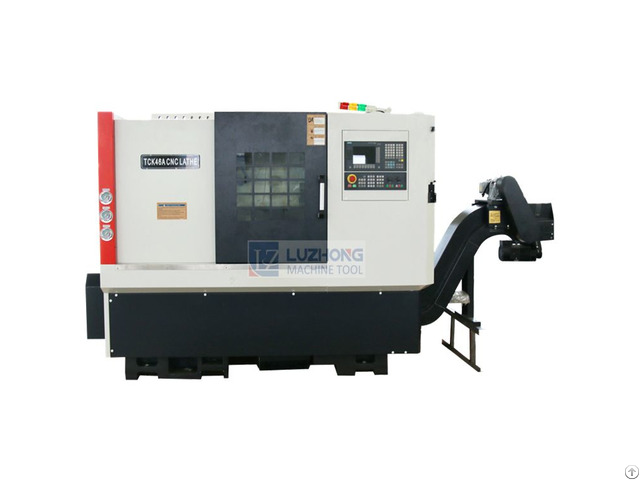

TCK46A Series CNC Lathe

Slant Bed CNC Lathe Machine

CNC Lathe Machine

Product features:

Highest accuracy Taiwan linear guide ways

Higher speed spindle unit, optional homemade spindle

Higher rigidity cast iron

Integrated automatic lubrication

One-piece casting slant bed cnc lathe

Application:

The machine is suitable for automobile, motorcycle, electronics, aerospace, military, oil and other industries, for rotary parts of conical surface, circular arc surface, surface and various inch screw thread batch, efficient, high precision automatic processing, with 45 degrees high rigidity of the whole bed, large torque spindle by Taiwan rail line, ensure that the machine is high rigidity, spindle near the center of the manipulator, the workpiece loading and unloading more convenient.

Product main technical specifications:

Specification Units TCK46A

Max.

swing over bed mm 460

Max.

swing over cross slide mm 170

Max.

turning length mm 350

Spindle unit mm Ø170

Spindle nose(optinal chuck) A2-5/A2-6

Spindle motor power kw 5.5

Max.

spindle speed rpm 3500

Spindle bore mm Ø56

X/Y axis lead screw specification 3210/3210

X axis limit Travel mm 240

Z axis limit Travel mm 400

X axis motor torque N.

m 7.5

Z axis motor torque N.

m 7.5

X/Z axis repeatability mm 0.003

Tails tock bore mm 65

Tails tock quill travel mm 80

Tail stock travel mm 200

Tail stock taper MT4

The bed form and inclination ° One -piece casting/30°

Machine dimensions(L*W*H) mm 2500*1700*1710

Weight kg 2600
