Taiwan 22b6s Cold Forming Machine - China

Main Advantages: 1 - Effectivelyimprove production efficiency and reduce production process.

Our equipment production capacity is remarkable, surpassesmost of manufacturers, greatly reduce production process, the standard productsare basically once formed, save time and effort.

2 - Save cost.

Due to the drastic reduction of production process, enterprises can save labor cost, manufacturing cost and time cost whileensuring production capacity.

The combined cost is reduced by as much as 50%.

3 - Productionsof machine are highly developable.

All kinds of standard, non-standard products, as long asmolds are formed, they will have a mass production 4 - Durable equipment life.

Ourcompany is taiwanese-owned enterprises, machinery parts and components areimported from Taiwan, then assembled in the mainland, and ourcompany has always been strictly the quality pass, just want to supply the best products to out customers.

Other InformationCertification: ISO9001: 2008 Warranty: 1 YEAR After-sales Service Provided: Engineers available to service machinery overseas

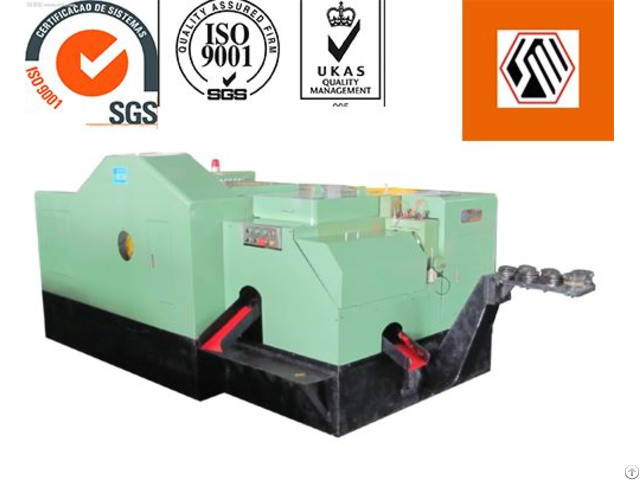

MODEL： SW-NF-22B6S COLD FORMING MACHINE

FORGING STATION： 6S

(MM) CUT-OFF DIA (MAX)： 23

(MM) CUT-OFF LENGTH: (MAX) 40

(TON) FORGING POWER: 200

PRODUCT SIZE (MM) : 5/16 9/16 8/14

OUTPUT PCS/MINUTE: 140

LUBRICANT (GALLON) 350

APPROX.

WT(TON) 19.5

FLOOR AREA (L*W*H)(M) REQUIRED (M): 4.5 2.4 1.7

Company Contact:

• Posted By: Dongguan Songwei Machinery & Metal Products Co.,Ltd

• Phone: 18819746244

• Address: No.98 Xinjin Road, Yangwu Industrial Zone, Dalang Town, Dongguan City, Guangdong Prov. China, DONGGUAN , GUANGDONG , China

• Email:

• Business Description: For over two decade, SongWei Machinery has dedicated to research and development, production, marketing Taiwan multiple station high speed nut part former cold forging machinery, which has been continuously improved to raise industry standards.

  Dongguan factories were set up in 1994, covering an area of 35000 square metres.

  We have a number of national invention patents and utility model patent certificates.

  Main parts, components are processed in Taiwan, through strict inspection and precision assembly, by checking and running test of each one, to reach high efficiency and durable stable operation, after that, deliver to the customers.

  The suggestions of each customers has our most attention, it's also the motive of our improvement, from which we will find out a better design or solution for the mutual issues.

  Our new generation of nut part forging machine is accord with modern productivities and high-tech quality requirement.

  “Quality keeps us qualify surviving, our development is rely on good reputation.

  ” Its our constant motto.

  At the same time, we will constantly update and develop new technologies to meet the needs of the future.
