Syk Double Head Oscillating Granulator - China

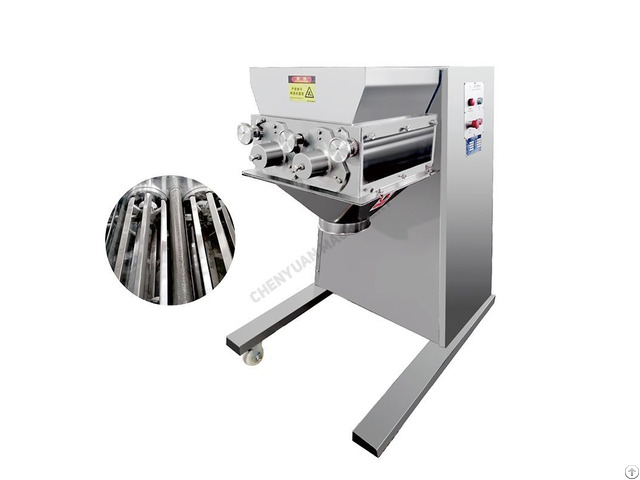

This SYK Double-Head Oscillating Granulator is developed and improved on the basis of the traditional rocking granulator.

It can be widely used in the control, chemical, food and other industries.

It can make wet powdery materials into granules, crush granulated dry materials and can quickly granulate.

This machine is in line with "GMP" which is the ideal granulation equipment.

The two rollers are reciprocally oscillated by mechanical transmission, and the material is extruded from the screen into pellets or pulverized or granulated, and has the advantages of simple operation, high output, simple and compact structure, small footprint and the like.

Technical Parameter

Model 100B 160B 250B

Production capacity(kg/h) 80-450 120-680 200-1200

Power(kw) 2.2 5.5 11

Rotary drum rotation speed(rpm) 55 55 55

Oscillating angle(°) 360 360 360

Rotary drum diameter(mm) 100×2 φ160×2 φ250×2

Overall dimensions (mm) 900×650×1100 1200×800×1350 1300×950×1400

Weight(kg) 380 650 1050

Company Contact:

• Posted By: Jiangyin Chenyuan Machinery Manufacturing Co., Ltd

• Phone: +86 189 1520 8288

• Address: No.61 Xiwen Road, Wenlin, Zhutang Town, Jiangyin , Jiangsu , China

• Email:

• Website: https://www.chenyuanmachinery.com/

• Business Description: Jiangyin Chenyuan Machinery Manufacturing Co., Ltd. is located in Jiangyin, the central city of the Yangtze River Delta with developed economy in China.

  The company is a mechanical manufacturing enterprise integrating professional R&D, production and sales.

  Products are mainly used in pharmaceutical, food, cosmetics, chemical, tea factory, daily chemical factory, plastic products and other industries of powder, liquid, tablets, capsules, particles, paste, paste body and other materials crushing, mixing, drying and packaging.

  The company strictly in accordance with the requirements of “GMP” product design and production organization, the whole equipment is made of stainless steel material, with compact structure, convenient operation, durable, easy cleaning and low noise, low energy consumption, high efficiency, good effect characteristics.

  The equipment is equipped with high-quality motors and high-quality electrical appliances of well-known brands at home and abroad, which effectively ensures that the equipment can run continuously and smoothly for a long time.

  Based on the stable and reliable quality and perfect after-sales,it will greatly reduce the production and use costs of customers.
