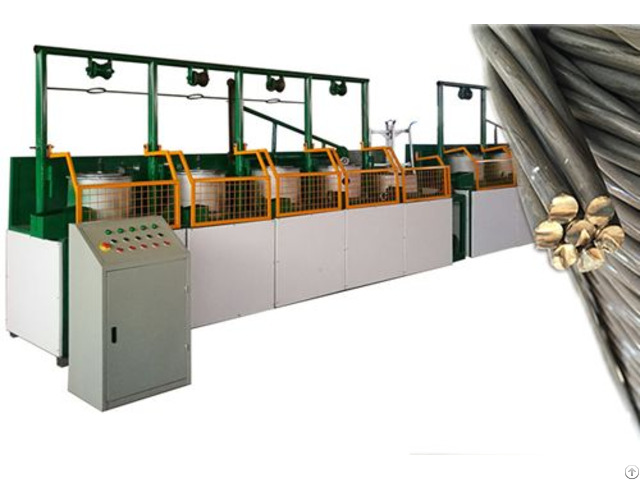

Straight Line Wire Drawing Machines - China

Technical Details: Drawing machine:

Technical specifications of the machinery:

Diameter 760 mm block

No.

of block: 9

Wire inlet size: 8/7 mm

Finish size 4/3 mm indented and plane

Speed of the machine: 8-10 meter/second.

Material: High carbon pc wire

Application: HC PC bar production line System with Single Wire LRPC line with Spiral/indenting.

High speed straightening machine

Wet drawing machine for 20G binding wire

For India.

Straight line steel wire drawing machine system for Saudi Arabia Technical specification:

8 blocks 550mm

5.5mm inlet to 1.8 mm outlet

Low carbon steel material

Designed with Rotating die holder The drawing machine including:

Wire scaling and brushing system

Dead block machine

Complete electrical control board

Power: 380 V 60 Hz

Supply market: Saudi Arab Straight Line Wire Drawing Machine for Brazil Market

Specifications required: Description:

Straight Line Wire Drawing Machine

- Low / Medium Carbon Steel - 10 Drawing Pass

- Wire Drawing Speed 720 mt/min

- Tensile Strenght < 1300 Mpa

- Motor Power Range 37 - 22 KW Measurement

Max Inlet Ø5.5 - 6.5 mm

Min Outlet Ø1.8 - 2.0 mm

Reel Ø560 mm

Company Contact:

• Posted By: Changjing Wire Drawing Machinery Co.

• Phone: 536523

• Address: Gulian Street, Dezhou, China, dezhou , shandong , China

• Email:

• Website: https://www.wiredrawingmachine.net

• Business Description: ChangJing is one of the pioneer manufacturers of wire machines in China.

  Our machinery equipment is used for manufacturing of industrial steel wires: Iron wire, galvanized wire, stainless steel wire, annealed wire, powder coated wire and other metal wires.

  Industries served: The wires are used in manufacture of Mattress, Clothing Hangers, Concrete Nails, Roofing Nails, Wire Ropes, Pre-stressed Stranded Wire for Concrete Construction, also Netting and Mesh Products ( Hexagonal Mesh, Square Mesh, Welded Mesh, Chain Link Fencing, Gabions and etc).

  Featured products: Our wire drawing machines fall into Dry Type, Pulley Type, Water Type and Straight Line Wire Drawing Machines.

  It can also be classified into light type, medium type and heavy type wire drawing equipment.

  Subsidiary equipment includes wire winding devices, wire discharging machine, wire galvanizing machine and etc.

  It is our aim to offer wire machinery with reasonable price, the super quality service for users.

  We always strive to deliver high efficient manufacturing machines with constant technical innovation and effort in eco-friendly design.

  Modular Wire Drawing Mill Solutions

  ChangJing supplies modular solutions for wire drawing in full sets.

  The production line / mill is composed with:

  Combined drawing machine;

  Chain draw bench;

  Peeling machine;

  Tow roll straightening machine;

  Irregular bar straightening machine;

  Pointing machine;

  Chamfering machine;

  Flat rolling mill machine;

  Polishing machine for round tube / bar
