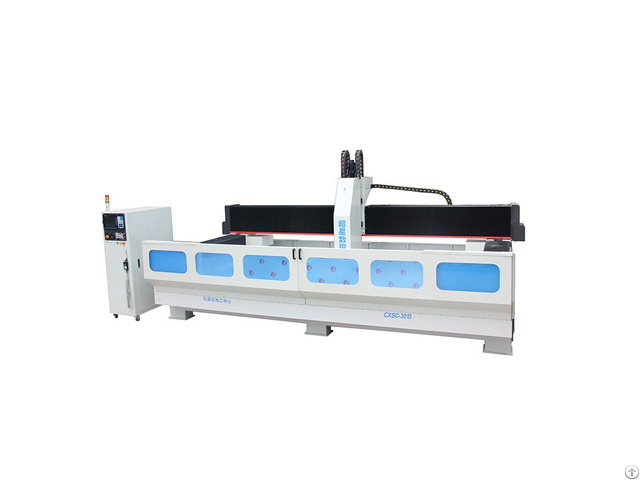

Automatic Quartz Processing Center CXSC-3015 stone cnc router machine cnc stone engraving machine wholesale This machine is used to dig, carve, pour, polish and polish the hand basin and tea plate for artificial stone, quartz stone, marble, rock plate table, and wash basin and tea plate.

All processes are made in one breath, reducing the number of fixed points of tool change, saving time and reducing the production of waste materials, and improving the utilization rate of the plate.

Advantages of cnc stone engraver

1 - Stable structure: thick wall square tube welding, side plate tempering treatment, bed after five milling processing center processing aging treatment, solid and deformation free.

2 - Shanghai Weihong control system, automatic tool change spindle, the spindle is a high-precision mechanical special spindle, low noise, long life.

3 - Modular structure design, simple and safe operation mode, to ensure the speed and accuracy of operation.

4 - Side mounted automatic tool change system with 18 knives in magazine capacity.

5 - High power vacuum pump adsorption table, plate more fixed, accurate.

6 - Perfect automatic lubrication system, extend the service life of the machine.

7 - It adopts gantry type movement, and can process the materials on the working table freely, which is convenient for operation.

8 - Y-axis is driven by double motors to ensure smooth operation.

9 - X / Y axis is driven by high precision rack, with high speed and precision.

10 - Z axis is driven by high precision double nut automatic clearance ball screw, with high precision.

11 - The three-axis adopts the square linear guide rail to ensure the high precision of the machine and bear the heavy load.

12 - Environmental protection and health: the whole machine adopts water dedusting and water cooling to avoid producing a lot of dust and refusing pneumoconiosis.

Specification of SuperStar Stone CNC Router

MODEL CXSC-3015

X Axis Working Size 3000mm

Y Axis Working Size 1500mm

Dimension 5500mm*3000mm*3000mm

Machining Head Width320mm(cast iron)

Side Plate Steel side plate (carbon steel)

Table Aluminum alloy plate + vacuum adsorption

Motor Euro 1.3KW / Weihong 1KW, Z axis brake

Spindle Speed 0-24000rpm/min

Stone Fixing Method Vacuum sucker

Rail Taiwan precision 30 / 35 Rail + Xinyue 2.0m rack

Cooling Mode Water-cooling

Spindle Taiwan 5.5 - kw servo spindle + supersynchronous motor

Driving System Shimpo reducer

Control System Shanghai Weihong system NC60

Software Operation Windows2000/XP/98

Tools Changer Straight tools changer with 18tools

Weight 5000KGS

Carving Instructions G-code/HP-GL

Vacuum Pump 5.5KW Stone CNC router is a cnc machine for stone cutting and engraving with computer number controlled.

This machine also can be called as stone CNC engraving machine, CNC stone cutting machine, stone CNC router or CNC stone router.

Stone CNC machines can be used for engraving granite, marble, crystal stone, microcrystalline stone, all kinds of artificial stone, glass, mural, Village stone, tombstone, milestone, decorative skirting line, etc.

It can be used for Yin carving, Yang carving, line carving, relief carving and other art carving.

The carving depth can reach 200 mm.

It can be used for arc bottom, sharp bottom, flat bottom characters, irregular cutting, chamfering, arc line and so on.
