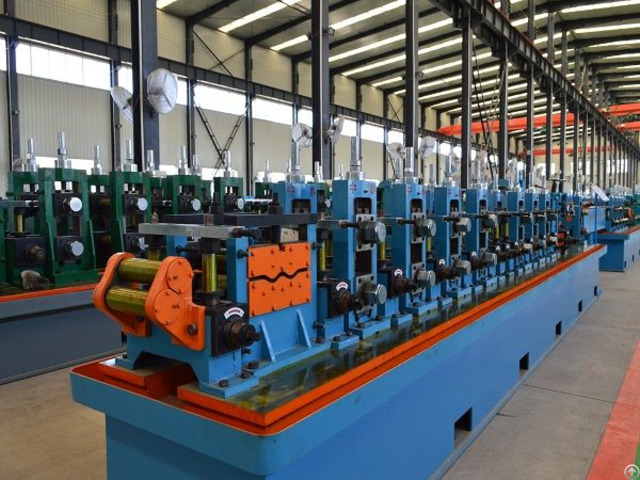

Steel Tube Making Machine Production Line High Quality Pipe Mill - China
price: 100.00 Dollar US$
The mill is used to manufacture of round pipe from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
1 - The High precision tube mill has some advantages as follow:
between level roller jumps 0.01, between frame and slide clearance ≤0.02mm, frame vertical degree ≤0.05, each frame parallel degree ≤0.1mm
steel pipe diameter and roundness error≤0.08mm.
2 - Product Process:
material(steel coil)→uncoiler→shear and welder→horizontal(or cage) accumulator→forming mill→HF soild welder→sizing mill→rounghly straightening(turkey head)→cut off machine→run out table
3 - The Basic Parameters:
stands of forming mill 7
stands of sizing mill 5
shaft material 40Cr
round pipe diameter 19-76mm
Round pipe thickness 1.5-3.0mm
square pipe size 15×15-60×60mm
square pipe thickness 1.5-2.0mm
we can design the machine according to the customer detail require.
Company Contact:
- Posted By: GEIT GROUP CO.,LTD
- Phone: +86-18330116125
- Address: Room711,Culture building, Beijing Road, Yunhe District, Cangzhou City, Hebei,China, Cangzhou , China
- Email:
- Website: http://www.geit-group.com
Published date: October 9, 2018
- Business Description: GEIT Group is a highly recognized fabrication of Color coating equipment company that has been committed to quality and service since 1992 - It is specialized in design, manufacture and install of Color coating line of steel coil, Color coating line of aluminium coil, etc.
