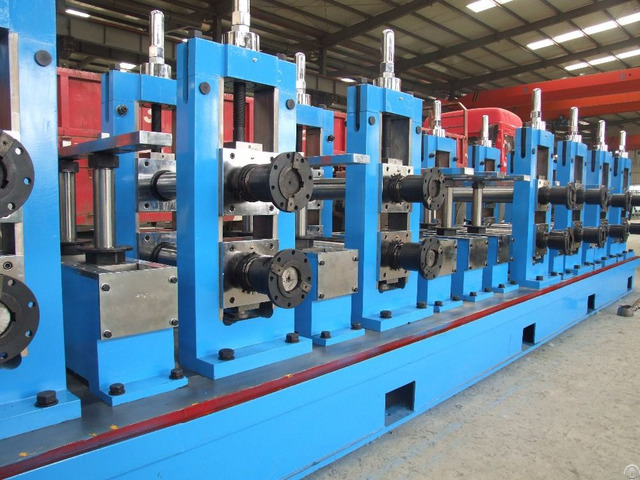

Steel Pipe Mill High Quality Tube Making Machine - China
price: 200.00 Dollar US$
This equipment is specially used for producingΦ20-Φ80mm, δ1-4.0mm high-frequency straight seam welded pipe and corresponding square pipe (17*17-62*62mm, 1.2-3.0mm).
The composition of equipment is from uncoiler to fixed length cutting saw.
Rolling speed can be according to suitable range of pipe diameter and wall thickness.
1 - The model and basic parameters
HG-20: Diameter(mm)10-2 6, Thickness(mm)0.5-1.5, speed(m/min)80-100, Host motor power(Kw)37, High-frequency equipment(Kw)60
HG-32: Diameter(mm)14-3 8, Thickness(mm)0.6-1.8, speed(m/min)80-100, Host motor power(Kw)75, High-frequency equipment(Kw)100
HG-50: Diameter(mm)20-6 3.5, Thickness(mm)0.8-3.0, speed(m/min)70-80, Host motor power(Kw)132, High-frequency equipment(Kw)200
HG-76: Diameter(mm)40-8 0, Thickness(mm)1.0-3.5, speed(m/min)60-70, Host motor power(Kw)132*2, High-frequency equipment(Kw)250
2 - Working flow:
Loading coil→uncoiler→levelin g→shearing and butt welding→accumulator→f orming→high frequency welding→intermediate annealing→air cooling→water cooling→sizing→cuttin g by fixed length→end facing and chamfering→hydraulic testing→UT testing→marking→stori ng
3 - Applications:
Construction / building materials steel pipe;Steel structure;Low pressure liquid, water, gas, oil, line pipe
Company Contact:
- Posted By: GEIT GROUP CO.,LTD
- Phone: +86-18330116125
- Address: Room711,Culture building, Beijing Road, Yunhe District, Cangzhou City, Hebei,China, Cangzhou , China
- Email:
- Website: http://www.geit-group.com
Published date: October 10, 2018
- Business Description: GEIT Group is a highly recognized fabrication of Color coating equipment company that has been committed to quality and service since 1992 - It is specialized in design, manufacture and install of Color coating line of steel coil, Color coating line of aluminium coil, etc.
