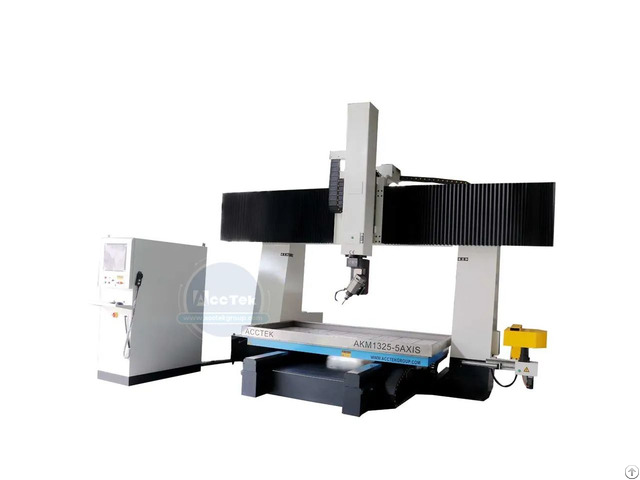

Statue Wood Carving 5 Axis Cnc Sculpture Foam Cutting Metal Mould Milling Machine - China
price: 32000.00 Dollar US$
Product Description
1 - Acctek 5 axis cnc router is specially for 4D 5D work, the C axis can rotate +/- 360 degree, the A axis can rotate +/- 110 degree; 2 - The 5 axis cnc router's main parts are all from world famous suppliers, such as Syntec control system, Yaskawa servo motors, Sampo reducer, Delta inverter, all components are from global leaders.
This ensures the 4 axis cnc router has a good performacne when working.
3 - With this 5 axis cnc router, you can make different surface carving, arc-surface milling, bend surface machining for 4D 5D jobs, like special shaped arts, bended doors or cabinets.
4 - This 5 axis cnc router can work on foam, MDF, Acrylic, wood, and the soft metal etc.
Technical Parameters Model AKM1325 5axis 5d engraving cnc router machine for mold Maximum working size X Axis: 1300mm Y Axis : 2500mm Z Axis: 600mm A Axis: ±110° C Axis: ±360° Table structure Cast Steel Structure X, Y axis transmission Germany Rexroth linear Guide rails H30, Germany WMH rack Z axis transmission Germany Rexroth linear Guide rails H30, TAIWAN PMI ball screw Spindle 10kw, Italy Hiteco Tool Magazine Disc-type ATC (with 8 tools) Tool holder HSk63F Spindle Speed 6000-24000r/min, variable speed Working Voltage AC220V/60Hz 1-phase or AC380V 60HZ 3-phase Motor and driver YASKAWA Inverter Delta inverter Command G code Controller Taiwan Syntec controller Software UG software Pump Oil free vacuum pump
Company Contact:
- Posted By: ACCTEK
- Phone: +086-0531-86160023
- Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China
- Email:
- Website: https://www.acctekgroup.com
Published date: June 7, 2023
- Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
