Spiral Submerged Arc Welded Pipes Line - China

GEIT Pipe welding equipment factory is located at Hebei, China, it has a combined capacity of 0.6 MTPA of Spiral submerged arc welded (SSAW) and longitudinal submerged arc welded (LSAW) steel pipes along with internal and external coating facilities of up to 2mn square meters annually.

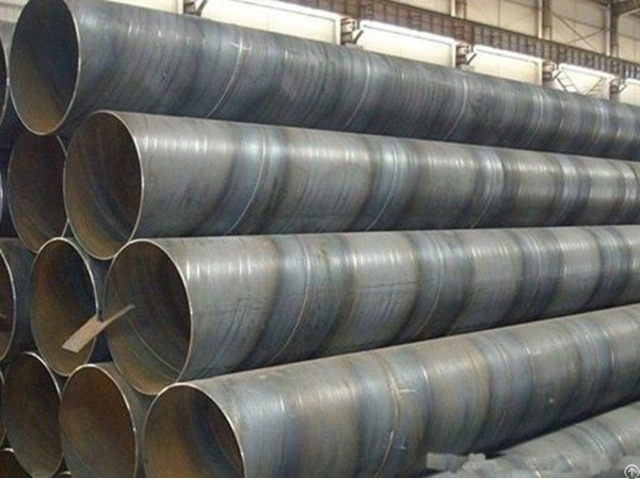

Content: Spiral submerged arc welded (SSAW) pipes are made from HR coil, where the coil is welded spirally to give a shape of pipe with the capacity to produce 270, 000 tonnes of HSAW pipes.

It manufactures high quality HSAW pipes conforming to international quality standards.

One of the unique features of the two-mirror image HSAW mill is that it can manufacture pipes of same size or two different sizes simultaneously at a very high speed, thereby drastically reducing the delivery time.

1 - Specifications

Plant Configuration: S-SAW

Diameter 16" to 100"

Grade API X80

Thickness 6.0mm to 25.4mm

Pipe Length (max) 12 meter

Current Capacity 275, 000 TPA

2 - Working process flow

Loading coil→uncoiling→leveli ng→Shearing and butt welding→Rotary shearing→Edge milling→Delivering machine→Prebending and guide plate→Forming→Inside welding→Outside welding→Cutting→Pulli ng out→Χray testing→Hydraulic testing→End facing and chamfering→UT→Marking →Storing

Advantages and Features:

1 - Flexible: Different width steel plate can be arbitrary formed into different big diameter pipe.

2 - Wide application industrial field: the pipes can be used in fields of petroleum pipeline, low pressure fluid conveying pipes, city gas pipeline, electricity heating pipe network, city construction pile pipe, pipe of industrial structure, etc.

3 - High quality welding & Perfect testing equipment

4 - Advanced electric system, ensure accurate forming, easy maintenance, good use reliability.
