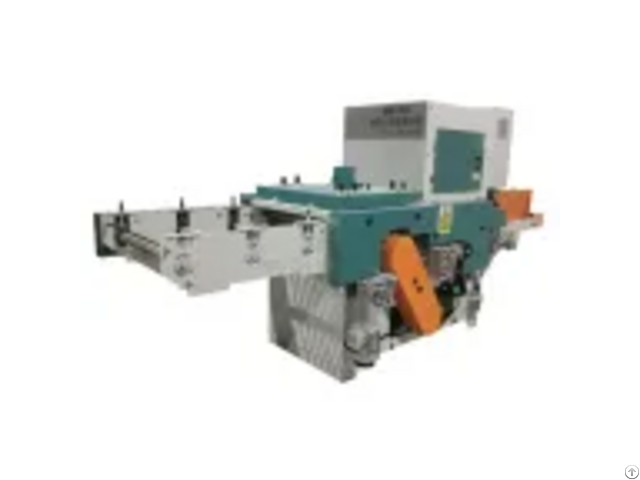

Speed Intelligent AI Visual Edge Cleaner

Lumber Edge Sawing Machine is a new type of automatic equipment.

The device passes Industrial AI vision can perfectly realize the removal of board edge motion recognition and finished product specifications.

The dynamic classification greatly reduces the labor intensity and the yield of the lifting plate.

How it Works

The intelligent AI visual edge cleaner takes pictures of the board through the camera and calculates, and the servo module adjusts, classifies and cuts according to the calculation result.

1 - Plate placing, conveying and

2 - AI camera photo recognition

3 - Clamping plate by Chuck

4 - Servo module alignment and convey that corresponding

5 - Check according to the calculation result Plates of different

6 - Plate output

1 - Adapt to various wood board image recognition AI intelligent rapid processing;

2 - The camera is a high-speed industrial motion camera with high resolution and fast acquisition.

High sensitivity, durability, stability, high-speed interface, versatility and other characteristics;

3 - The moveent of the board feeding mechanism is controlled by frequency conversion and multi-stage speed, so as to realize the smooth transportation of the board;

4 - The correction mechanism module adopts high-precision reducer and servo motor.

Now high-precision wood correction;

5 - The equipment can realize remote service and support remote software upgrade.

Parameter introduction

Main technical parameters of MQB800G

Machining length 400-700mm

Processing width 30-300mm

Processing thickness 10-20mm

Installed power 8.55kw

Work efficiency 45-50 pieces/min (adjustable low/medium/high speed mode)

Conveying feed rate Max: 800mm/s (frequency conversion)

Feeding speed of front and rear conveying of saw 1200mm/s

Operating speed of servo module Max：1000mm/s

Dimensions (L * W * H) 4000x1300x1850mm

Equipment weight 1.9t

Safe mode Emergency stop, automatic mode stop

Operation panel Touch screen

EOOE is a China manufacturer and supplier of woodworking machinery for sale.

In addition to wood machine, we also have the ability to provide one-stop options for your bamboo wood machinery.

With our rich experience and expertise in providing package projects, installation and training, we have earned a good reputation as a reliable partner in the industry.
