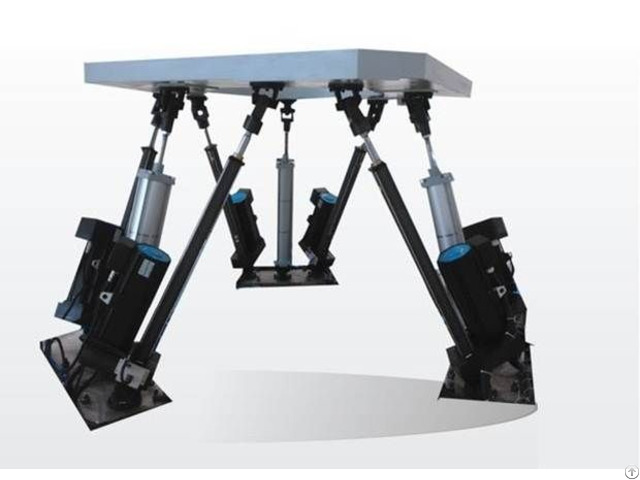

Six Degree Of Freedom Platform - China
price: 1.00 Dollar US$
Six Degree of Freedom Platform Function Position and Pose simulation, Sine wave simulation, single degree of freedom motion, multi-degree of freedom multiple motion Random wave recurrence, Road spectrum, wave spectrum and flight spectrum recurrence etc.
Payload 0~20t Tabletop Dimension 100×100mm~5000×5000mm Displacement ±10mm~±600 Angular Displacement ±1°~±30° Velocity 0~1000mm/s Angular Velocity 0~200°/s Acceleration 3g Angular Acceleration 500°/s2 Displacement Repeatability 0.02mm Displacement of Angular Repeatability 0.004° Control Interface Serial Port, Network Port Others According to the customer requirements, we can customized the control interface and tabletop dimension and adjust the performance data.
Company Contact:
- Posted By: Wuhan Skyline Control Co., Ltd.
- Phone: 13343458811
- Address: Building A1, Hangyu Area 2, Wuhan University Science Park, East Lake High-Tech Development Zone, Wuh, wuhan , hubei , China
- Email:
- Website: http://www.skyline-control.com/
Published date: June 21, 2019
- Business Description: Skyline is a provider of systems and solutions in inertial navigation, stabilization, guidance and control for defense, simulation system integration, motion simulation equipment, industrial automation system device, hydraulic and pneumatic mechanical components, aircraft ground detection instruments, computer software and hardware, special aerospace equipment applications.
