Shuttleless Quilting Machine - China

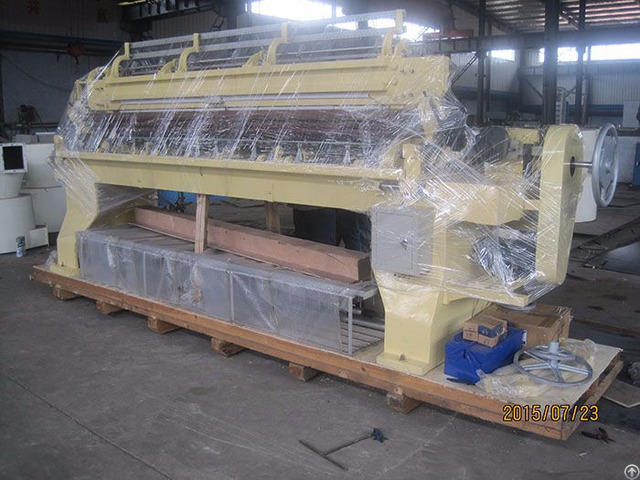

Shuttleless quilting machine

Quilting machine

Usage:

Mainly used to produce Simmons mattress, brown pad and so on.

Features:

Broken line from the stop, automatically from the needle

Cut line pull cloth with high speed, production efficiency than similar domestic products 20% -50%.

Bottom line can choose ordinary blended cotton thread, no need to replace.

Sewing thickness of different fabrics, the pattern deformation gap is small.

Use of pneumatic trimming mechanism, due to the rapid cutting line, cut line neat, basically no exposed head.

Dual-axis use of high-power original Panasonic servo motor, can be quilted thickness <= 80mm.

Large X-axis travel (travel up to 4200mm) can quilting a large pattern.

Integrated body design, machine beautiful and generous.

M/C Dimension 5100*1600*2500

Quilting Width 2485

Needle Row Space 50.8, 76.2, 127(5#) 76.2, 76.2, 152.4(6#)

Needle Space 25.4

X Distance 300

Quilting Thickness <=80

Step Length 3--8

Production Speed 60-230(m/h)

Needle Model 24/180 23/160 22/140 21/130

Main-Shaft Revolving Speed 200-900(r/min)

Power 7KW

Voltage 380V/50HZ 220V/60HZ

Weight 4000KG
