Servo Cnc Turret Punching Machine - China

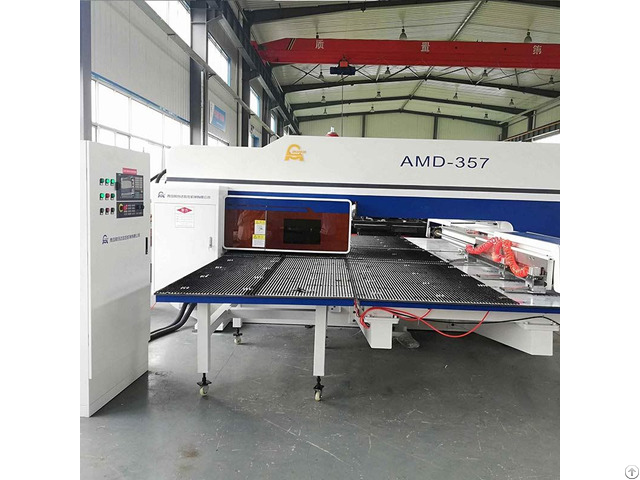

Servo CNC Turret Punching Machine

Product Description

servo cnc punching machine is mechatronics automation equipment, it's widely used in the chassis cabinets processing, air conditioners, refrigerators, solar plate, kitchen equipment, instruments and meters, electric control cabinets, building decorative materials, auto parts, silencing plate, lamps, and other sheet metal processing industries.

Servo CNC Turret Punching Machine Main Specification:

Specification Unit AMD

Transmission mode / Servo

Punch force KN 300

Power rating KW 20

Processing sheet size mm 2500*1250

Processing sheet thickness mm ≤6

turret punching machine Max.

Punch diameter mm Ø88.9

Sheet moving speed m/min 40

Punching frequency hpm 1600

Hole accuracy mm ±0.1

Number of stations in turret No.

16/24/32

Turret speed rpm 30

Controlled axis No.

3/4

Rotating location No.

0/2

Air pressure Mpa ≥0.8

Outline Dimension mm 4490*5300*2110

Machine Weight T 11 Servo CNC Turret Punching Machine Introduction

Machinery main details:

Germany Siemens 808D System;

Yaskawa & Siemens Servo Motor;

Domestic Well-known Hydraulic System;

AMADA Standard 80mm Ductile Iron Thick Turret DISC;

Internationa Ball Screw & Linear Guide;

International electrical components;

O type steel plate welding press.
