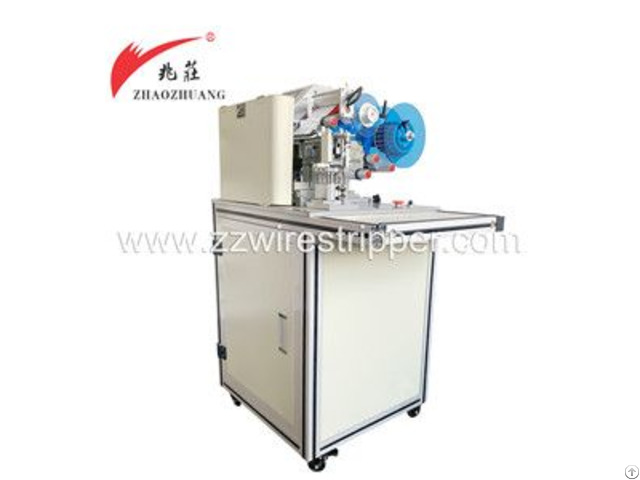

Semi Automatic Wire Labeling Machine - China

Usage

Applicable Label: Self-adhesive Label

Applicable products: products that need to be folded and labeled on wires, tubes, rods or other special-shaped interfaces;

Applied industries: widely used in food, toys, daily chemicals, electronics, medicine, hardware, plastics, printing, and other industries;

Examples of application: power line, data line, warning line, USB line, optical fiber line, all kinds of wires; Product characteristics:

Fast Sensing of Tag Electro-Eye Tag Gap to Complete Tagging and Recognition

Reasonable mechanical structure design guarantees smooth and stable labeling

Effectively reduce product costs, improve product logo aesthetics and enhance product competitiveness

It is easy to use and can be adjusted in a wide range to realize discount labeling for products of different specifications.

Improve the efficiency of product labeling and film attachment, accurate attachment location, good quality and high stability

Reasonable structure design, simple and quick replacement of vulnerable parts

Avoid a series of problems such as low labeling efficiency, skew, blistering, folding and irregular attachment position.

Parameters:

The following are the technical parameters of standard models, other special requirements and functions, which can be customized.

Applicable wire: diameter 1 ~ 12 mm, round line, flat line, round pipe, flat pipe can be;

Label Shape: Label Folding

Applicable labels: all kinds of sticker labels

Efficiency: 20pcs/min (depending on label size and manual operation speed)

Labeling accuracy: +0.5mm

Size: 750*500*1150mm

Trial label size: 110 mm long (customizable beyond range) wide: 10-50 mm

Working Pressure: 0.4-0.7 Mpa

Power supply: 220V50Hz

Whole machine weight: 90kg
