Semi Auto Paste Filling Machine - China

Semi automatic chilli / hot / tomato / chili sauce filling machine for paste

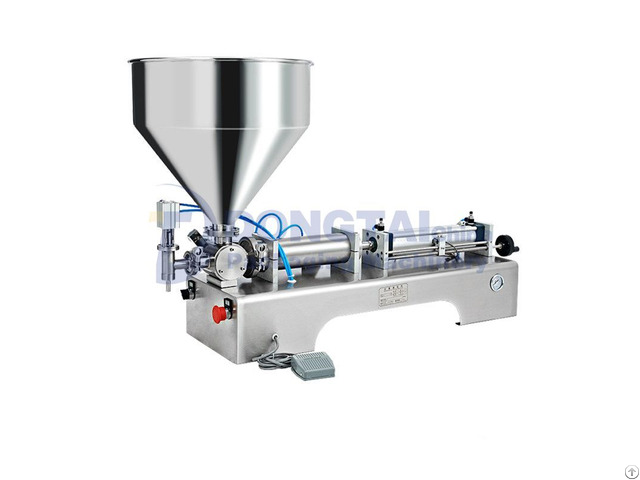

Product Name: Semi-auto Paste Filling Machine

Introduction:

Suitable for filling cream/gel/paste/ointment in tubes, jars, bottles, cans etc.

Available in manual as well as motorized model

All contact parts are made up of SS316

Filling range with change parts: 5 to 5000ml per stroke

SS made hopper having capacity up to 20KG

Easy to operate, no maintenance required

food sauce Capping machine Characteristic:

Specifications:

Voltage: 220/110V 50/60Hz

Power: 10W

Rated pressure : 0.4-0 .

6 MPa

Filling speed : 10-30 bottles / min / head

Filling precision: ≦ ± 0.5%

Filling range of DG/SGF(SS316): MODEL DG60 DG125 DG250 DG500 DG1000 DG2500 DG5000

RANGE OF FILLINGml 5-60 10-125 25-250 50-500 100-1000 250-2500 500-5000

BEST RANGE OF FILLINGml 25-60 50-125 100-250 200-500 300-1000 500-2500 1000-5000 Filling rang of DTG/STGF(SS304):

MODEL DTG100 DTG280 DTG500 DTG1000 DTG2500 DTG3000 DTG5000

RANGE OF FILLINGml 5-100 10-280 20-500 50-1000 300-2500 500-3000 500-5000

BEST RANGE OF FILLINGml 25-100 100-250 200-500 300-1000 500-2500 1000-3000 1000-5000 Paste Filling Machine Main Technical Parameters:

Principles and characteristics:

DG/SGF paste filling machine is semi-automatic piston type developed by our company, filling a series of high concentrations of fluids.

It is through air cylinder to drive a piston and transfer--valve’s Three Contacts principle to extract and to split out the highly concentrated material, and by magnetism-reed switch to control air cylinder’s travel, then can adjust the filling volume.

This device is simple and reasonable in structure, easy to understand, with high accuracy.

3 - Filling volume and filling speed can be arbitrarily adjusted with high filling accuracy.

4 - Pneumatic part adopts Germany FESTO and Taiwan AirTac pneumatic components.

5 - Filling head adopts anti-drip, anti- drawing and lifting devices.

DONGTAI can provide a wide variety of filling machine such as liquid filling machine, sauce filling machine, powder filling machine and granule filling machine.

Our products have high quality and competitive prices.
