Seamless Rolled Ring Forging

Mechanical properties:

Deformation temperature: Hot forging

Surface treatment: quenching and tempering+quenching

Product Specification: It can produce various forgings with diameters ranging from 100mm to 4000mm

Product Material: Carbon steel, alloy steel, stainless steel, etc

Production process: Forging and CNC machining

Product Description

Manufacturing Standards: Strictly produce forgings in accordance with established relevant requirements

Technical parameters: According to relevant standards or drawings and requirements provided by the customer

Product features: Made according to customer drawings, transparent in price, qualified in size, long in service life, and smooth in surface

Main Products

Forging Ring&Flange OD 4900mm Max.

ID 4750mm Max.

H 1200mm Max.

Forging Shafts OD 1200mm Max.

Length 7000mm Max.

Tube sheet OD 2000mm Max.

6500kg Max.

Free Forging Weight 10000kg Max.

Drop Forging Weight 7000kg Max.

Other Forgings as required.

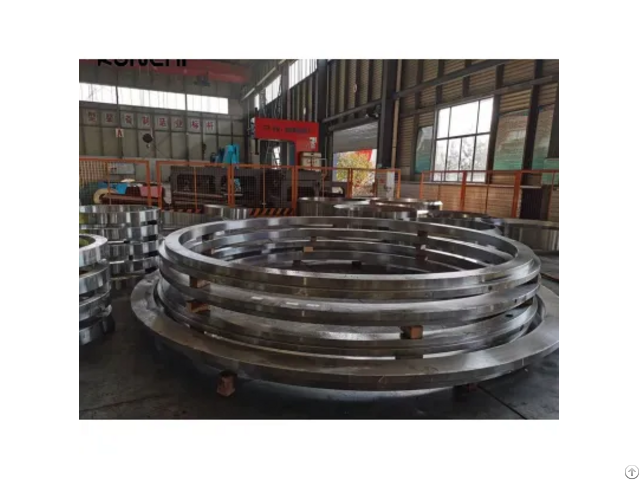

Seamless Rolled Ring Forging

The seamless rolled ring forging process combines strength, toughness, and fatigue resistance through a unique grain flow.

The process begins with cutting the initial material stock to size and then rounding it using open die presses.

This rounded piece is subsequently upset and pierced to create a preform, essentially a donut-shaped forging ready for the ring rolling mill.

On the rolling mill, axial rolls control the ring's height, while an idler roll applies pressure against a drive roll.

These forces reduce the wall thickness and height of the rolled ring while increasing its diameter until the desired size is achieved.

At Runchi, we forge seamless rolled rings in a wide range of sizes and grades, including carbon and alloy steels, stainless steels, and custom-specific grades.

Advantages of Seamless Rolled Ring Forging:

When it comes to obtaining metal rings for various applications, the choice of the metal forming process is crucial.

Cast rings often suffer from poor strength and integrity, while rings cut from plate materials and welded together can be susceptible to fatigue, excessive material, and processing costs.

Custom forging, as performed by Runchi experts, offers greater versatility and improved quality while reducing material expenses.

Additional benefits include:

Controlled directional grain flow

Increased strength

Enhanced structural integrity

Elimination of inclusions and porosity

Minimized waste

Elimination of welding, reducing the risk of part fatigue and breakage Compared to Hot Rolled Burnout Plates:

The unidirectional grain flow in hot rolled plates can result in exposed grain ends when cutting the ring shape.

This makes the material more prone to fatigue and stress corrosion cracking.

In contrast, the forging process shapes the material directly into the desired ring size, eliminating the need to remove excess corner stock or center holes.

Furthermore, forging offers greater size versatility while minimizing material waste, often leading to cost savings.

Compared to Castings:

Cast rings often lack the desired grain structure, negatively impacting impact toughness, ductility, and fatigue strength.

This can potentially lead to cracks or fractures.

Forging, on the other hand, provides controlled directional grain flow, increasing strength and offering superior structural integrity.

It eliminates the common issues of inclusions and porosity found in castings.

Compared to Rolled and Welded Rings:

Fabricated rings can be susceptible to porosity and inclusions in the material.

Extensive welding in rolled and welded rings can compromise part integrity, corrosion resistance, and shape, potentially causing distortion.

The seamless rolled ring forging process avoids welding entirely, maintaining part integrity, corrosion resistance, and shape.

This ultimately results in a stronger ring with reduced risk of fatigue and breakage.

Choose seamless rolled ring forging for superior strength, quality, and performance in your metal rings.

More information click here.

Company Contact:

• Posted By: Shandong Runchi Machinery Technology Co., Ltd

• Phone: +8653317851571

• Address: Jingzhong Town, Linzi District, Zibo City, Shandong Sheng, China

• Email:

• Website: https://www.runchiforging.com/

• Business Description: Shandong Runchi Machinery Technology Co., Ltd. is a modern forging enterprise that integrates forging, heat treatment, and machining.

  At present, we can produce ring forgings with a maximum diameter of 6500mm and a maximum of 10 tons of open die forging.

  The company has advanced testing equipment, which can carry out ultrasonic flaw detection, magnetic particle testing, hardness testing, mechanical property testing, metallographic analysis, chemical analysis and other inspection items for forgings.

  The company has passed ISO9001 quality system certification, ISO14001 system certification, OHSAS18001 system certification, weapons and equipment quality management system certification, Class A manufacturing license for pressure vessel components, CCS China Classification Society certification, BV French Classification Society and other certifications.
