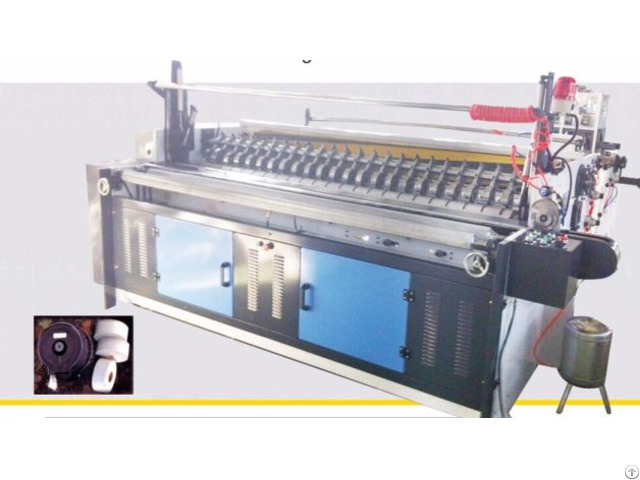

Sanxp B Industrial Roll Slitting Rewinder - China
price: 10000.00 Dollar US$
SANXP-B Industrial Roll Slitting Rewinder can make both industrial paper roll and rolled hand towel and the switch can be done in a short time.
The machine is set with pneumatic roll loading, belt driving, tension control and air shaft, enabling edge embossing, perforating, slitting and rewinding at one time.
Main features:
1 - Air shaft is used to rewind the finished products with high location accuracy.
2 - Edge Embossing Unit: Adopts steel to steel edge embossing, independent cylinder control to avoid paper separating.
3 - Horizontal unwinding unit with pneumatic paper roll loading and wide belt paper transmission is set with individual tension control unit for each jumbo roll.
4 - Frontal and back inching switch is set to drive the paper to make easier and safer operation.
5 - Optional sealing function can be added to the customer’s requirement.
Machine Model 1575 1880 2400 2600 3150 3500
Raw Material Width(mm) 1800 2100 2400 2500 3000 3500
Finished roll diameter 90-300mm
Raw material diameter 1100mm
Perforation pitch 90-160mm
Speed 180-200 m/min
Pneumatic System 3 HP air compressor
Power 4.5-11KW
Dimension 6200*2600*1800-6200*4000* 1800mm
Calendering unit Steel to steel, steel to rubber
Company Contact:
- Posted By: San Machinery Co.,Ltd.
- Phone: +8653255570881
- Address: 2208. No. 33 Lianyungang Road Qingdao, China, qingdao , shandong , China
- Email:
Published date: July 10, 2017
- Business Description: San machinery is a 11-year gold supplier of paper converting machine based in China.
With good quality and competitive price, products of San have been sold to over 30 countries and regions.
We are responsible, leading and realistic.
