Sanitary Shell And Tube Heat Exchanger - China

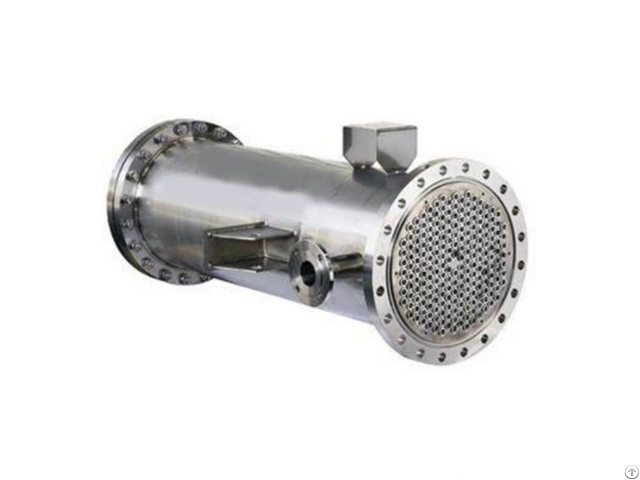

Sanitary Shell &Tube heat exchanger

Sanitary Shell and tube heat exchangers consist of a series of tubes which are fitted in the shell ends, just like the KEAN Sanitary Shell And Tube Heat Exchanger, the KEAN Units have the addition of mixing elements in the tubes to ensure that higher viscosity liquids are continually turned into the tubes so that it is not just the liquid in contact with the tube walls that is heated or cooled.

Shell and tube heat exchangers are typically used for high-pressure applications as they are robust due to their shape.

At present, KEAN Sanitary Shell And Tube Heat Exchanger is the most widely used heat exchanger.

Although Sanitary shell and tube heat exchanger can't compare with plate heat exchanger or fin heat exchanger in terms of compact structure, heat transfer intensity and metal consumption per unit heat transfer area, it has a wide range of operating temperature and pressure, low manufacturing cost, convenient cleaning, large processing capacity and reliable work.

The shell and tube heat exchanger made by our company includes cooler, heater and condenser.

The characteristics of Sanitary Shell and tube heat exchanger:

1 - good sealing performance, 2 - elimination of leakage, 3 - high heat exchange efficiency, 4 - easy maintenance, 5 - long corrosion life and so on.

Sanitary Shell and tube heat exchanger principle:

heat and cold for heat transfer of two kinds of fluid, one in the pipe flow, known as pipe fluid;The other flow outside the tube is called shell - side fluid.

In order to improve the heat transfer coefficient of the fluid outside the tube, several baffles are usually installed in the shell.

The baffle can increase the fluid velocity of the shell side, force the fluid to cross the tube bundle several times according to the prescribed route, and enhance the degree of fluid turbulence.

The heat exchange pipes can be arranged in equilateral triangle or square on the tube plate.

The equilateral triangle has compact arrangement, high turbulence and high heat transfer coefficient.

The square arrangement makes it convenient to clean the outside of the tube and is suitable for the fluid that is easy to scale.

Sanitary Shell And Tube Heat Exchanger Features:

Sanitary Shell And Tube Heat Exchanger is adopting superior external thread copper tube to ensure high heat exchange efficiency, compact volume and light weight.

This tube heat exchanger is mainly used in the process of heating or cooling materials inpharmaceutic, chemical industry, food and beverage industry.

The tube heat exchanger is made of 304 and 316L.

Sanitary Shell And Tube Heat Exchanger is equiped with safe fusible plug to ensure safe through automatical melt and depressurization when liquid reach specific temperature in shell.

Condenser end cap equiped water discharge device to avoid tube damage caused by water into ice at cold weather.

Company Contact:

• Posted By: Kean Zhuolu Technical Equipment Co., Ltd.

• Phone: 17432120092

• Address: Zhuolu Economic Development Zone, Zhoulu Town, Zhangjiakou City, Hebei Sheng, China

• Email:

• Business Description: Kean Zhuolu Technical Equipment Co.,Ltd has already involved in chemical and sanitary equipment from 2010 - Our factory is equipped with 11,770 square meters of manufacturing space and 150 professional staff.

  Our technical team has rich experience with more than 20 years in the pharmaceutical industries.

  KEAN Zhuolu has a wide range of products, including stainless-steel single tank, large stainless-steel multiple and complex tanks, auto-control bio fermenters, reactors, aseptic magnetic mixing tanks, tube heat exchangers, filters, centrifugal pumps, diaphragm valves, sampling valves and etc.

  Furthermore, we also offer bio fermentation system, emulsifying mixer system, sterile preparation dispensing System，large infusion systems, liquid handling system, CIP systems, modular fabrication project and turnkey project.
