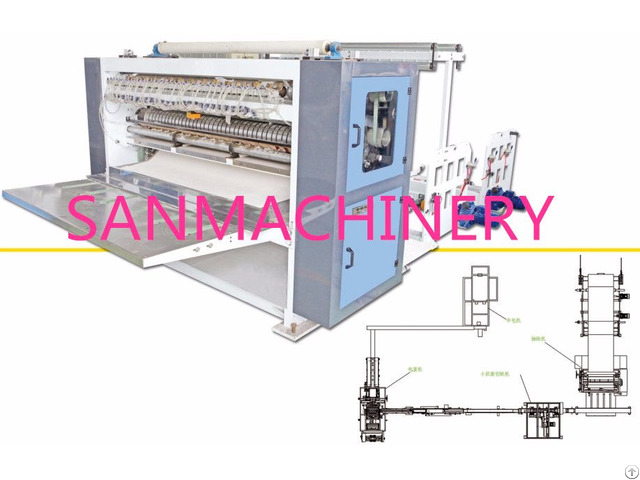

Sanh 5l 7l 8l 10l V Fold Towel Machine - China
price: 15000.00 Dollar US$
SANH-5L/7L/8L/10L V Fold Towel Machine adopts PLC programmable technology, frequency control and touch type multi-screen HMI.
An independently developed long-distance communication service system is equipped to monitor the running of the machine.
The whole machine adopts timing belt driving and stepless speed adjustment, fitting more kinds of raw material and enhancing the quality and quantity.
Main features:
1 - Pneumatic steel to steel embossing roller and pneumatic separation.
2 - Pneumatic jumbo roll loading, stepless speed adjustment and tension control
3 - Roots Vacuum Pump is set for larger absorption and better operation.
4 - Pneumatic dot slitting and full slitting are available to make products of different width.
5 - Steel to steel embossing unit to bond the paper together.
6 - Optional jumbo roll guiding system.
7 - The machine will stop when the paper is broken, avoiding waste caused by no paper or broken paper.
8 - Frontal and back inching switch is set to drive the paper to make easier and safer operation.
9 - Automatic timing lubrication on key parts.
Finished Products unfolded size 200*200mm
Raw material diameter 1300mm
Speed 0-160 m/min
Pneumatic System 3 HP air compressor
Power 5.5-11KW
Vacuum suction unit power 11-32 KW
Dimension 6370*1780*2130-6370*2080* 2130mm
Calendering unit Steel to steel, steel to rubber
Weight 4500-7500kg
Vacuum suction unit Roots vacuum pump
Company Contact:
- Posted By: San Machinery Co.,Ltd.
- Phone: +8653255570881
- Address: 2208. No. 33 Lianyungang Road Qingdao, China, qingdao , shandong , China
- Email:
Published date: July 10, 2017
- Business Description: San machinery is a 11-year gold supplier of paper converting machine based in China.
With good quality and competitive price, products of San have been sold to over 30 countries and regions.
We are responsible, leading and realistic.
