Roof Tile Double Layer Roll Forming Machine - China

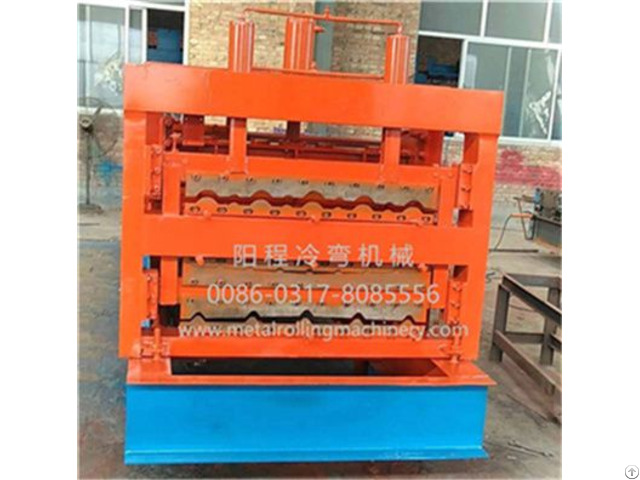

Roof Tile Double Layer Roll Forming Machine

Metal Roof/Wall Panel Machine

We also can design the Roof Tile Roll Forming Machine strictly as per your required profile drawing

Metal Roof Roll Forming Machine SURFACE TREATMENT

1) Processing material: aluzinc/galvanized steel/colored steel coil

2) Material thickness: 0.3-0.7mm

3) Effective width: 1000mm

4) Feeding width: 1220

5) Main motor power: 4kw

6) Pump power: 4kw

7) Roller Stations: 14&14 stands

8) Productivity: 0-12m/min

9) Roller material: high grade NO.

45 forged steel, with hard chrome plating

10) Shaft material: high grade NO.

45 carbon wrought steel

11) Shaft diameter: 70mm

12 Driven type: gears and 1＂Chain

13) Cutter material: Cr12 mould steel with quenched treatment

14) steel coil roof Roll Forming Machine Main frame: 350H Steel

15) Medium plate thickness: 16mm

16) Control system: PLC computer control

17) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

TECHNOLOGY Panel Roll Forming Machine

Manual decoiler→feeding device→main roll forming machine→hydraulic pressing system→hydraulic cutting system→ output table, 4kw electric-motor, hydraulic station with 4kw electric motor, PLC control system

SALES TERMS

1).

Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2).

Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3).

Package: naked with simple plastic film and loaded in one 20-feet container

4).

Delivery time: 50 working days after receipt of the deposit

5).

Guarantee: 12 months.

If any part of machine breaks, we will supply it for free.

6).

After sales service

This producing line is maintained free of charge for 12 months.

When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.

Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
