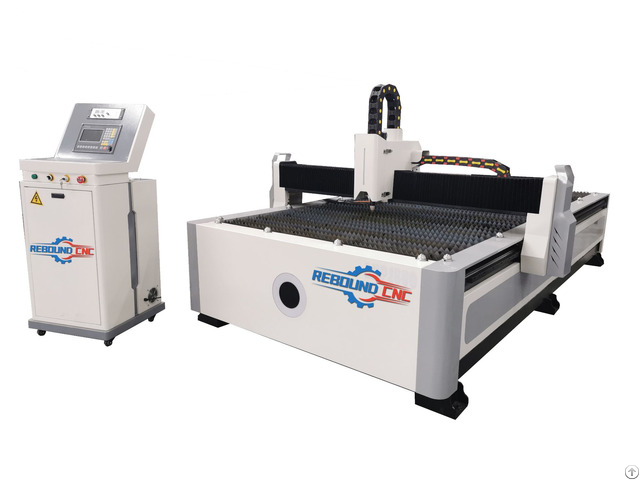

Renbound Cnc 2040 1530 Thin Mild Steel Sheet Plasma Table Cutting Machine - China

REBOUND CNC 2040/1530 thin mild steel sheet CNC plasma table cutting machine is especially designed for thin steel plate ( 0-3 mm )fast cutting.

It adopts cylinder compacting system to prevent steel plate moving during cutting.

It has a very fast cutting speed for the thin plate.

2040 1530 thin mild steel sheet CNC plasma table cutting machine features:

1 - The beam uses light structural design, with good rigidity structure, light deadweight and small movement inertia.

2 - STARFIRE control system, the file incision and export automatic correction, real-time tracking detection of plasma power in the process of cutting current.

The control system uses the U-disk exchange processing document, easy to operate.

3 - Z axis adopts Cylinder pressure, so high precision and long life time using are assured.

4 - It can apply to iron sheet, the aluminum sheet, the galvanized sheet, hundred steel plates, metal plates and so on.

Equipped with other metal equipment, forming the advertising word processing tubeline.

Completely solve the traditional manual processing methods.

Improve the efficiency of several times.

5 - Cutting kerf is small, tidy, and avoid a second dressing processing.

6 - High cutting speed, high precision, and low cost and cheap.

7 - Support FASTCAM, Astronautics Haire, ARTCAM software, Type3 produce standard G code way document, also can change software to read AUTOCAD software produce DXF form documents.

Applicable Materials:

Especially for all kinds of metal materials such as steel, copper, aluminum and stainless steel that thickness less than 8mm cutting.

2040 1530 thin mild steel sheet CNC plasma table cutting machine parameters: Model RB 1560 2040

Working area (X-Y) 1500mm*6000mm, 2000mm*4000mm

Working material Iron, Steel, Aluminum, sheets, Galvanized, sheets.

Titanium, Plates

Working Thickness 0-8mm

Cutting Speed 0-12000mm/min

Power 8.5kw

Input Voltage 380V 50HZ/60HZ

Plasma Current 63A

Connecting Way USB

Working Mode Untouched arc striking

Cooling method With water pump and tank provide circulating water cooling

Rail guide HIWIN square rails

Transmit way Taiwan imported ball screw

Operation language Chinese or English

Command G code, *uoo, *mmg, *plt

Optional power source America HYPERTHERM or China HUAYUAN

Spare parts Electrode, Electricity nozzle and Water jacket
