Reliable Ty Series Vacuum Unqualified Turbine Oil Purifier Machine Gear O Il Filtration - China

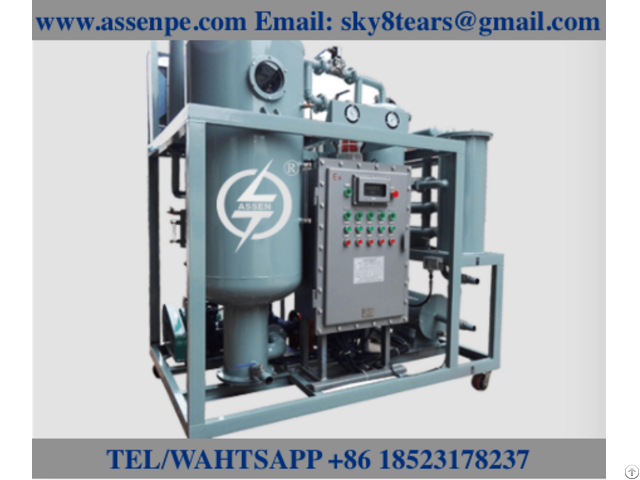

Reliable TY Series Vacuum Unqualified Turbine Oil Purifier Machine, Gear Oil Filtration Application

TY Series is a reliable machine to purify unqualified turbine oil.

It adopts vacuum pump to ensure the vacuum value during processing.

It also can connect directly to the turbine lube oil reservoir and flush the system while it continues to operate.

With the installation of jumpers we can bypass the bearing and purify the oil before it enters critical components.

Once the fluid has reached the desired cleanliness, the bearing can be opened and flushed with clean fluid.

In the power generation industry reducing downtime is a must.

Our reclamation not only provides a cost saving benefit, but also reduces unit downtime while increasing fluid longevity.

Features

1 - It adopts the coalescence and separation technique and three-dimensional flash distillation technique, and it has strong ability to break emulsion and remove water from the oil.

2 - Optimized electric heating system with automatic constant temperature controller ensures the oil temperature to be even and stable.

3 - Precise multi-stage filtration system helps remove different kinds of impurities with high quality filter element of better ability of containing pollutants and long service life.

4 - Advanced infrared oil level control system and pressure protection device make operation simple and safe.

5 - It can purify any kinds of turbine oil used in steam turbine and water turbine online and onsite.

6 - Air cooling system helps cool down air and gases from the flash distillation column so as to extend the service life of vacuum pump, avoiding the inconvenience of water cooling.

7 - The machine can also be installed with digital flow meter and timer to calculate and record the volume of output oil and working hours (it's optional).

8 - 600-18000Lph flow rate can be choose for meeting different needs.

Item Unit TY-10 TY-20 TY-30 TY-50 TY-100 TY-150 TY-200 TY-300

Flow rate L/H 600 1200 1800 3000 6000 9000 12000 18000

Vacuum Degree MPa -0.06 ~ -0.095

Working Pressure MPa ≤0.3

Temperature Range ºC 40 ~ 70

Water Content PPM ≤100

Cleanness NAS ≤6 grade (NAS1638)

Demulsification Value min ≤15 (GB/F 7305)

Heating Power kW 12 15 18 24 45 60 72 84

Total Power kW 14 17 20 27 48 66 81 97

Inlet/outlet Caliber mm 25 25 25 32 42 50 50 60

Weight kg 400 450 500 600 700 900 1050 1550

Dimension Length mm 1280 1350 1350 1400 1500 1500 1600 1800

Width mm 750 900 950 950 1000 1200 1350 1400

Height mm 1450 1450 1500 1600 1650 1800 1800 1850
