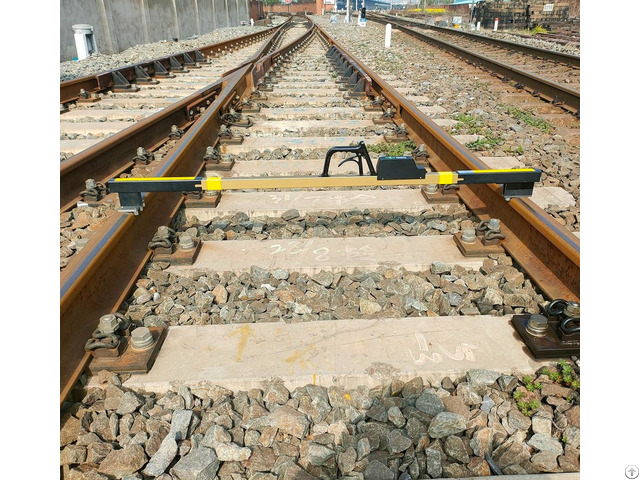

Railway Track Level Gauge Ruler Digital - China
price: 900.00 Dollar US$
Type: Digital Track Gauge
Material Aluminium alloy
Dimensions (L x W x H) (mm): 1.6*0.3*0.6m
Brand Name: Linkage
Model(1435mm): GJC -TJG1
Track gauge(mm): 1384-1470
Gauge rail check gauge(mm): 1364-1450
Guard rail face gauge(mm): 1344-1430
Super elevation measuring range: -200~+200
Flangeway Clearance: 20-107
Superele vation division value: 0.10
Track gauge division value: 0.1
Track gauge max indication error: ±0.25
Superelevati on error: ±0.45
Company Contact:
- Posted By: Wuhan linkage track equipment co
- Phone: +8615671313697
- Address: Room 1007, Block B, Building 1, Huagong Science Park Modern Service Industry Base, University Park R, Wuhan , Hubei , China
- Email:
- Website: https://www.linkrailtech.com/
Published date: March 25, 2024 - Modified date: March 25, 2024
