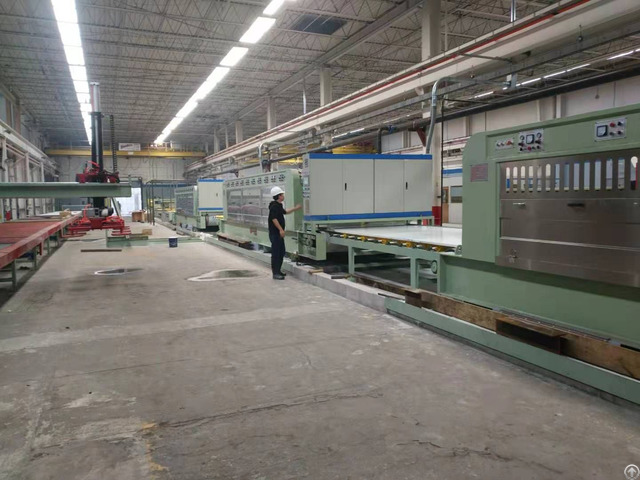

Quartz Stone Pressing Line - China

quartz stone pressing line

advantage:

Quartz stone pressing line of utand adopts the patented press machine by ourselves, which can pump, vibrate and hydraulic simultaneously, with low construction cost and no pinhole for artificial quartz plate, more than 30 quartz stone pressing line selected by customers all over the world!

Power for quartz stone pressing line

160 KW

Application:

CNC quartz stone pressing line of utand can produce artificial quartz stone, acrylic board, artificial stone decorative board.

quartz stone pressing line design

Properly designing a quartz stone pressing line requires defining different commercial and technical variables.

This means that in the discussion configuration phase, customers and suppliers need to conduct in-depth analysis together to ensure that production processes, layouts and equipment are tailored to the specific requirements of the customer.

With the answers to the following key information, we can design a quartz stone pressing line that fits the customer's needs: 1 - What is the target annual output of your quartz stone pressing line design? (m2/year) 2 - What kind of style do you want to produce? (Super thin whiteboard / monochrome board / texture board / multi-color board / special color) 3 - What is the average slab size for quartz stone pressing line? (slab size / order requirements) 4 - What level of automation is required for quartz stone pressing line design? (Full automatic / semi-automatic / manual) 5 - What level of quality and repeatability are needed? 6 - quartz stone pressing line installed in the new factory? If not, please give the existing plant design and layout dimensions.

quartz stone pressing line most important part is the quartz stone press machine.

Quartz stone press machine is a kind of quartz stone equipment.

We are not very common in common people, so we are not familiar with it.

Quartz stone press machine refers to a molding machine used for pressure forming of industrial products.

Hydraulic cylinders are generally used.

Therefore, it is also called hydraulic press.

press machine of quartz stone pressing line

press machine of quartz stone pressing line is suitable for pressing high-density quartz stone slab.

It consists of indenter and pressurized cylinder.

The pressure cylinder presses the indenter onto the raw material.

The oscillator on the indenter drives the indenter together to vibrate at high frequency.

The pressure cylinder constantly applies pressure continuously to obtain a dense slab.

Our quartz stone press machine guarantees that the indenter always maintains a strong downward impact during the pressing of the quartz stone slab, effectively reducing the resin content of the quartz slate and reducing the manufacturing cost of the plate.

The quartz stone press is mainly It is made up of mechanical, hydraulic, pneumatic, vacuum and fully automatic control parts.

The artificial quartz stone press machine ensures the rapid formation of quartz stone slabs under high vacuum and high frequency vibration.

The press has flexible operation and the thickness of finished plates can be from 8mm.

It can be changed to 30mm at will, and it is not necessary to change the mold when changing the thickness of the product.

It is convenient to use, which greatly reduces one workload and one cost for the enterprise.
