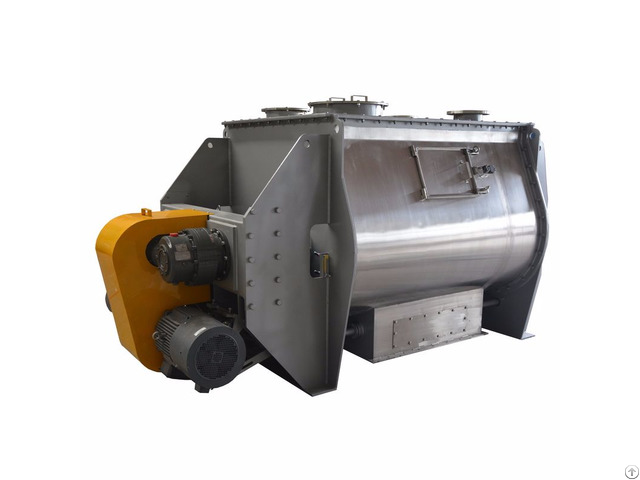

Putty Powder Horizontal Double Shaft Paddle Blender - China

Horizontal paddle blender is widely applied in chemical, biological, and construction material.

It can mix powder, granule, and fiber especially in battery, construction, environmental, mineral and agricultural line.

Working principle:

Horizontal paddle blender is a batch mixer with two counter-rotating shaft that are equipped with ten paddles, they overlap each other following the driven unit, Blades generate centrifugal force during high speed rotation, spilling the material to the upper part in the barrel, then material falling down (the vertex of material is in a so-called instant non-gravity state).

Driven by the blades, material is mixed back and forth; also sheared and separated by the meshing space between the twin shafts; fast and evenly mixed in the end.

Standard configuration:

1 - Choose the batch working capacity from 0.1cbm to 20cbm, select mixer accordingly.

2 - Choose raw material for the part contact with raw material, non-contact with raw material, other parts like motor and reducer, bearing material can not be chosen; According to the material to be mixed, processing condition, health level, raw material can be chosen from mild steel, sus304, sus316L, sus321; And choose the surface treatment according to the raw material.

3 - Motor power is chosen according to the material gravity, fluidity, and operation.

Operation is divided as: Start mixer when it is empty (normal duty); Start mixer with load (heavy duty)

4 - Adding the auxiliary components like spraying, heating and cooling according to processing condition.

5 - Mixer inlets: feeding ports, cleaning port, vent.

6 - Chose discharging and driven mode: manual, pneumatic and electric.

Note: mixer selection is a very important step, your detailed material information; processing and factory arrangement is very helpful to get professional technical support from us.
