Pu Sandwich Panel Production Machine - China

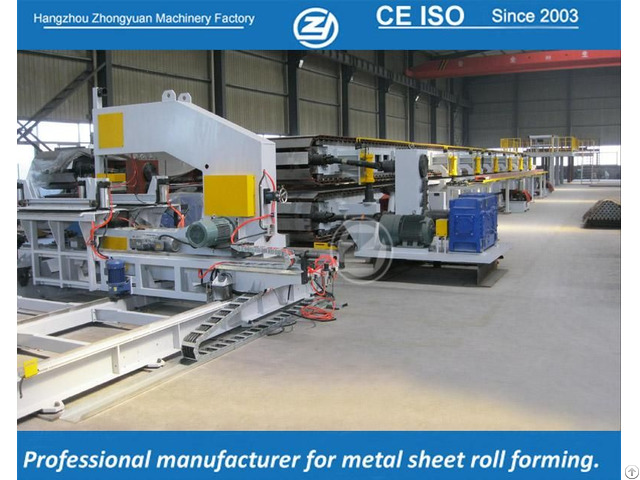

PU Sandwich Panel Production Machine

Description of PU Sandwich Panel Production Machine

Our PU sandwich panel Production line is one line that integrates advanced mechanical, chemical, electrical, hydraulic, and pneumatic technologies.

sandwich panel production line Technical parameters

Sandwich Panel Spec

Min.

cutting length 3 meters

Max.

stacking length 15m

Panel width 1000mm (can be designed as per client’s requirment)

Panel thickness Mini thickness 30mm (corrugated sandwich panel)

50mm (wall panel) Max.

thickness 150mm(exclude corrugated sandwich panel)

Steel Sheet Spec

Thickness 0.4-0.7mm color steel sheet

Width 1250mm (can be designed as per client’s requirement)

Max.

coil weight 10 tons

Inner Dia.

of coil 508mm

Whole Line Spec

Working speed About 3-7m/min (adjustable)

Total length about 105m

Working height 1200mm (height of panel coming out)

Pressure for foaming 150-200 bar

Double belt conveyor 23m

Control mode Mitsubishi PLC and converter

Total power About 100Kw (as per final designing)

Power required 380V/3phase/50Hz or as per customer's requirement.

Air pressure 0.7Mpa (for buyer to prepare) Roll Forming Machine Product Application

Due to its high efficiency and simple operation, this forming machine is widely used in the construction of steel structure enclosures, cold storage, and mobile buildings.

In order to satisfy various customer requirements, we design and manufacture PU sandwich panel production machine in different specs, models and configurations.

Company Contact:

• Posted By: Hangzhou Zhongyuan Machinery Factory

• Phone: 8657182172966

• Address: No.228, Yongli, Nanyang Street, Xiaoshan District, Hangzhou City, Zhejiang, P. R.of China, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.zhongyuanforming.com

• Business Description: Company Information

  Established in 2003, Zhongyuan Machinery Factory is experienced manufacturer of metal forming machinery with ISO quality system.

  Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution.

  We are"All-in-house source" – from raw material to the final high-precision forming machine.

  Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine, etc, which allow us to complete the majority of our processing procedures on-site.

  So we can better control the machine quality and delivery time of machines.

  Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines, etc.

  We also can supply steel coils, EPS sandwich panels, PU sandwich panels to suit diverse requirements of our global customers.

  Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Australia, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania, Ethiopia, Gana, Guinea, South Sudan, Algeria, Niger, Philippines，Indonesiaï¼ ŒIndia, Russia, Azerbaijan and Kazakhstan.

  We have rich experience for metal forming machine solution, competitive price and excellent service.

  We will continue to do our best to supply perfect products and service for customers.

  Invite you to contact us for further information

  Competitive Advantage

  Zhongyuan is a "All-in-house source" – from raw material to the final high-precision forming machine.

  All are done in our factory.

  Quality and delivery time can be controlled here.

  1 - Our Focus is on our Customers

  We consult with each customer individually, and together develop the best solution for any application.

  Through this collaboration with our customers we strive to keep the solution effective, cost effective and timely.

  2 - With Zhongyuan products you save time and money!

  Zhongyuan is a "All-in-house source" – from raw material to the final high-precision forming machine.

  We have our precise tooling center.

  when roll forming machine must be delivered immediately, depending on customer's features, we can manufacture and deliver machine in only 5-8 weeks.

  3 - You can Rely on Our Zhongyuan Team!

  The dedicated staff at Zhongyuan is our key to success.

  We have engineers with experience more than 15 years in metal forming industry.

  Employees and their development are of fundamental importance to Zhongyuan.

  4 - Quality by Zhongyaun

  Zhongyuan is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007 -

  Our Integrated Management System comprises Quality, Environment, Employment and Health Protection.

  When it comes to safety, there are no compromises.
