Professional Manufacture Industry Fiber Laser Metal Cutting Machine - China

Mains Features of steel copper aluminum cutter closed cnc fiber laser cutting machine Safety and no pollution * With a fully enclosed design;

* The observation window adopts an European CE Standard laser protective glass;

* The smoke produced by cutting can be filtrated inside, it's non-polluting and environmentally friendly;

* The weight of machine is 7500kg.

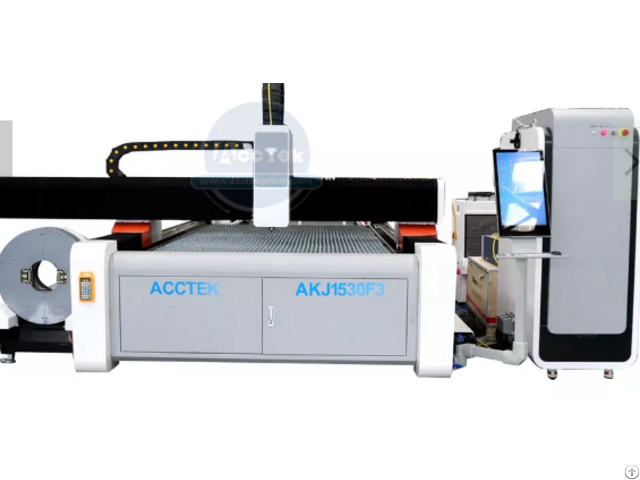

Feature of AKJ1530F3 steel copper aluminum cutter closed cnc fiber laser cutting machine THE THIRD GENERATION AVIATION ALUMINUM GANTRY

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding.

After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

THE SEGMENTED RECTANGULAR TUBE WELDED BED

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.

Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

WITHOUT MANUAL FOCUSING

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.

The speed of automatically adjusting focus lens is ten times of the manual adjusting.

BIGGER ADJUSTMENT RANGE

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

LONG SERVICE LIFE

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Application of AKJ1530F3 fiber laser cutting machine: Applications Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment, Aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc.

AKJ1530F3 fiber laser cutting machine can carry up to 8000W laser power, so cutting some thick plate, it is a very good choice.

For example, agricultural machinery, textile machinery, food machinery and construction machinery and other large machinery and equipment manufacturing, usually use high power fiber laser cutting machine for processing.

Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel, aluminum-plating zinc plate, copper, and other metals.
