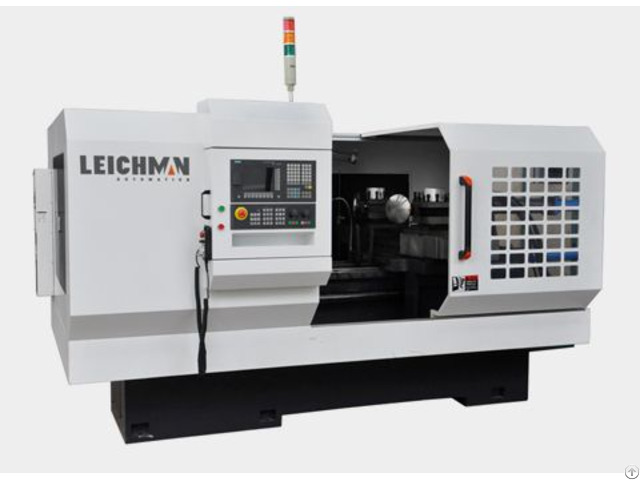

Pressure Containers Cnc Spinning Machine - China

Pressure Containers CNC Spinning Machine

The process of forming by rotating metal is used to make pressure vessels and vessels.

The special configuration of this CNC Spinning Machine allows the starting tube to be fixed and "heated" by means of an external induction device, so that the corresponding fusion of the steel takes place to ensure the container is sealed.

Pressure vessels can be used for oxygen cylinders, CNG, hydraulic accumulators, etc.

Product Advantages

Processing and production is simple

Short Spinning Time

High Output

High Accuracy In Production And Processing

High Automation Accuarcy

Minimum Tolerance

Siemens SIMENS 808D 828D CNC Systerm

Playback motion control

Machine Description

LEICHMAN Made Double roller vertical style strong spinning machine specializing in the manufacture of various models of automobile wheel.

1 - The spindle and transmission system of the Metal Spinning Machine bed and the tail stock of the spinning roller frame have enough rigidity.

2 - the lateral and longitudinal feeding mechanism of the spinning frame is combined driven by hydraulic pressure and machinery, which can produce enough selective pressure and adjust speed in balance.

3 - Processing Capacity: 24"* 12"

4 - Singal roller extrusion force: 10T

5 - Control Shaft number: 4 Feed Shaft, 1 Main Shaft

6 - High Precision Metal Spinning Produce is realized by using servo motor drive and high rigidity structure.

Applications of LIGHT DUTY CNC METAL SPINNING MACHINE

Lamp reflectors, LED lampshades, handicrafts, hardware processing industries, etc.

Material:

Aluminum, Aluminum alloy, Mild Steel, Carbon Steel, Cooper

Product introduction:

The light duty WLL series Leichman CNC spinning machine is specially developed to meet the needs of small spinning parts in mobile lighting, commercial lighting, cookware, hardware, handicrafts, air conditioners, automobiles and other industries.

It could save labor costs and also affordable.

It could also be equipped with manipulator which could do the automatic loading and unloading.

The machine is very stable with mature technology and now is highly recognized by customers from all over the worlds.

Company Contact:

• Posted By: Jiangsu Leichman Automation Technology Co., Ltd.

• Phone: 18621686133

• Address: NO. 68, Renmin Middle Road, Jingjiang , Jiangsu , China

• Email:

• Website: https://www.leichman.cc

• Business Description: Spinning technical problems are thrown at me, letting you make money easily

  Since 1984, Mr.

  Su established a processing base in Shanghai that produced engine components and missile headshells, and he accumulated rich experience in spinning technology.

  In the production, Mr.

  Su found that the old-fashioned spinning technology could not be integrated and was unable to reduce the welds of the parts.

  For all difficult-to-deform materials, it also needed to be machined after forging, and the material utilization rate could only reach 3%.

  After years of research and development, the intelligent one-off spinning machine was successfully manufactured.

  In 2008, Mr.

  Su established the Lefeld Spinning Manufacturing Co., Ltd. in Shanghai and extended branches in the Americas and Europe.

  The horizontal advancement has mainly solved the following problems for aviation, military, automotive and other industries:

  1 - The use of strong spinning technology for difficult-to-deform materials such as hyperbolic, parabolic, and double-cone shapes can improve the strength, fatigue resistance and the reliability of parts after spinning.

  2 - It can easily solve the problems with the special-shaped components, and the spinning of special materials except for the circular workpiece.

  3 - Intelligent control continues after the spinning is interrupted.

  4 - Composite spinning: the combination of the cylindrical part and the profiled part adopt more advanced technology to combine the general rotation and the strong rotation.

  5 - Perfectly combine modern robots, laser cutting and spinning machines to achieve a truly unmanned workshop production line.

  Our company cherishes responsibility and integrity.

  Mr.

  Su said that the machine manufacturing industry should not only provide cost-effective machines but also provide high-quality services.

  You can hand over the problems of spinning to us, and even the company will provide new product designing and processing services to help you save time and money on new product development.

  Our Products:

  - Pressure Containers Cnc Spinning Machine

  - Auto Parts Cnc Spinning Machine

  - Automobile Wheels Cnc Spinning Machine For Sale

  - Engine Cover Metal Spinning Lathe

  - Metal Spinning Lathes Machine For Container
