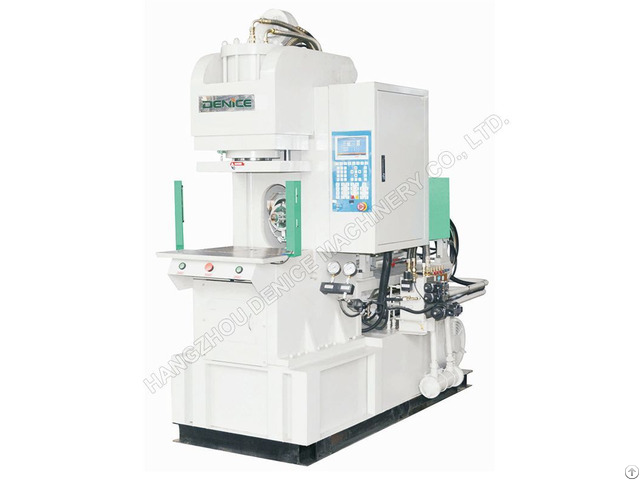

Plug Making Machine Dc 450 - China

plug making machine DC-450 * Vertical clamping, horizontal injection, ease to put and take out items.

· * No column, three sides open, tending to produce long plastic products.

· * Completely model of the machine, in order to increase production efficiency double slide table (DC-DS) or rotary table(DC-R)series can be selected.

We are injection molding machine manufacturers.

Specification

Model Unit DC-450

(Injection Unit) Screw diameter mm Ф32 Ф36 Ф40 Maximum injection pressure Kg/cm2 1531 1210 980 Theoretical shot volume cm3 105 132 163 Maximum shot weight g/Oz 97(3.4) 122(4.3) 151(5.3) Injection rate cm3/sec 66 84 104

( Clamping Unit ) Clamping force ton 45 Minimum mold thickness mm 175(Can be customized according to customer requirements) Opening stroke mm 200 Open daylight mm 375(As required) Nozzle Center Height mm 150±20 Nozzle Center Distance mm 75 Ejector force T 1.1 Ejector stroke mm 88

(Others) Pump motor power Kw 7.5 Hydraulic system pressure Kg/cm2 140 Barrel heating power Kw 4.75 Total wattage Kw 12.25 Oiltank capacity L 184 Machine weight (approx.

) T 3.2 Machine dimensions(approx.

) m 2.2×0.9× 2.1

Company Contact:

• Posted By: Hangzhou Denice Machinery Co.,Ltd

• Phone: 86-571-63501868

• Address: Shangguan Xiang Special Industrial Zone ,Fuyang District, Hangzhou , Zhejiang , China

• Email:

• Website: https://www.denice.com.cn/

• Business Description: Hangzhou DENICE Machinery Co., Ltd. is one of the most professional manufacturers of vertical injection molding machines in China.

  The company specializes in the production of high quality and high precision vertical injection molding machines that the clamping force is from 15 tons - 650 tons, and the injection volume is from 35 grams, 8000 grams.

  We have standard series machine, single slide plate series, double slide plate series and rotary table series injection molding machine.

  In addition, to improve the work efficiency and to the different needs of customers in different industry, we have special offer special machine with industry characteristics, such as: Special machines for golf, High-speed & high pressure plastic injection machines, J series energy-saving plastic injection machines, Liquid silicon rubber plastic injection machines(LSR), BMC, Bakelite injection molding machines, bi-color (multicolor) injection molding machines, APC series full automatic belt molding machines, and so on.

  Our products are widely used in automobile manufacturing, medical equipment industry, cosmetics industry, cutting tools, sanitary ware, furniture, toys, daily necessities, baby supplies, electronic connectors, optical lenses, back plate, watch movement gears, soles, color plate, hose and hard tube, and so on.

  Uphold the quality first, service customers, innovation management concept, our company continues to improve ourselves, constantly improve the quality of service, and create best value for our customers.
