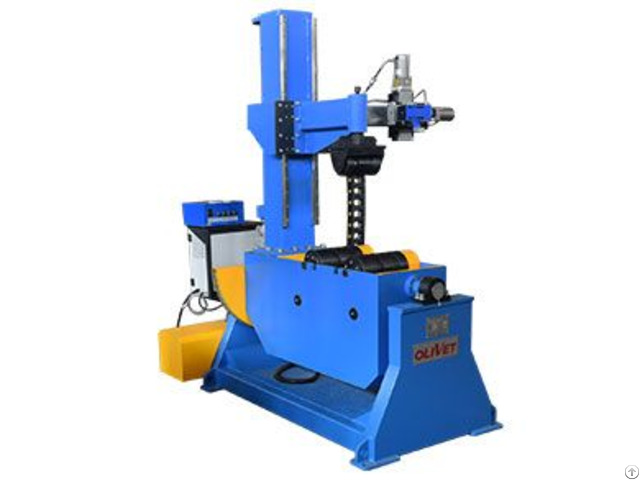

Pipe Pinching Rotator Yghb Series - China

Pipe Pinching Rotator– YGHB Series adjustable welding rotator supplier Practical and Versatile

Olivet has a comprehensive range of pipe rotator for automatic welding.

These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work.

YGHB Series pipe rotators are ideal solutions to solve the problem of rotating and tilting demands on pipes or flange welding.

Height, angle, and speed are all adjustable.

A motorized slide with oscillator optional can be to realize automatic welding.

Scope of Delivery

1 Main frame body

1 Electric control system

1 control cabinet

1 remote pendant

1 foot switch

1 X-Y slide (optional)

1 Oscillator (optional) adjustable welding rotator Main Technical Parameters

Model YGHB-10

Max Loading capacity 1, 000 kg

Pipe/ Flange diameter Φ100-700 mm

Roller linear speed 100-1000 mm/min

Rolling speed adjustment SVF control by AC inverter

Roller motor power 0.75 kw

Max.

rolling torque 960 N.

m

Tilting angle +/- 45°

Tilting speed 0.3 rpm

Tilting motor power 1.1 kw

Max Tilting torque 5000 N.

m

Usage for welding on pipe, elbow and flange

Straight pipe with Straight pipe joint, Straight pipe with flange Welding Rotator contain self-Adjusting welding rotator and adjustable welding Rotating Machine, you can't miss the single-driving self-alignment welding turning-roll in our company.
