Pharmaceutical Sanitary 50 50000l Mixing Tank - China

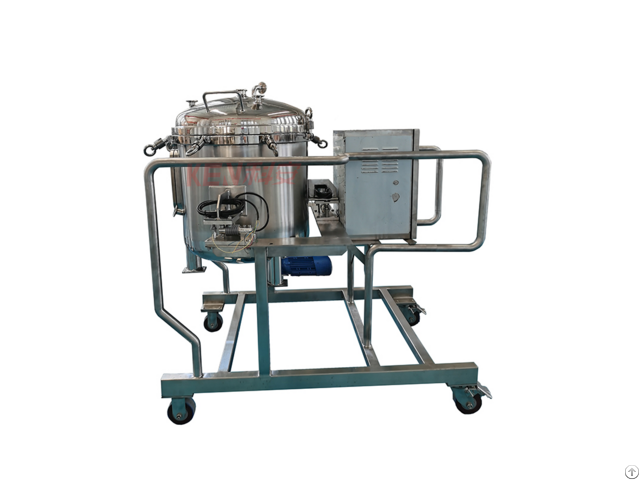

Pharmaceutical sanitary 50-50, 000L Mixing Tank

Liquid mixing and storage tanks come in a variety of forms: static storage, fixed speed mixing, variable speed mixing, intermitant speed mixing, agitating, and more.

Stainless steel is ideal for these tank applications.

Non-oxidizing, easy to clean, easy to sterilize, available in standard and custom sizes.

KEAN Liquid Mixing Tanks come from variety of shape, including vertical, horizontal with ellipsoidal, tori-spherical head, cone bottom bottom and dish bottom.

The tank transition sections use circular arc transition, no dead corners, for easier cleaning.

We offer both single wall or jacketed to allow heating or cooling.

Agitation specifications are based upon Customer Request.

Our mixing tanks are designed, manufactured, and inspected in accordance with GMP, ISO 9001 Standard and ASME standard,, KEAN specializes in stainless steel tanks – it’s all we do.

If you need high-quality stainless steel liquid mixing tanks for your application – one, ten, one hundred or more – we can build them for you.

● Material: SS304 or SS316L

● Design Pressure: ~0.1MPa ~ 1.0MPa

● Design Temperature: 3 ºC ~ 200 ºC

● Volume: 50 ~ 50, 000L based upon customer requirements.

● Polishing Precision: Inner Surface Ra <0.4µm, Outer Surface Ra 0.8-1.2 µm or finer

● Finish Type: Mechanical polishing, electrolytic polishing, sand blasting, mirror, pickling

● Outer surface can be polished, wire-drawn, and sandblasted according to customer requirements.

● Based on mixing materials and requirements of the mixing effect, the structure of the impellers can be either turbine type, paddle, anchor type, frame type, screw conveyor or other.

● Sanitary 304 of 316L Tri-clamp, Flange Connections

Optional Configuration:

Pressure gauge

PH meter

Sight glasses

Top or side manholes

CIP spray ball

Liquid in-outlet

Loading cell

Liquid level control sensor

More based upon customer requirements

Company Contact:

• Posted By: Kean Zhuolu Technical Equipment Co., Ltd.

• Phone: 17432120092

• Address: Zhuolu Economic Development Zone, Zhoulu Town, Zhangjiakou City, Hebei Sheng, China

• Email:

• Business Description: Kean Zhuolu Technical Equipment Co.,Ltd has already involved in chemical and sanitary equipment from 2010 - Our factory is equipped with 11,770 square meters of manufacturing space and 150 professional staff.

  Our technical team has rich experience with more than 20 years in the pharmaceutical industries.

  KEAN Zhuolu has a wide range of products, including stainless-steel single tank, large stainless-steel multiple and complex tanks, auto-control bio fermenters, reactors, aseptic magnetic mixing tanks, tube heat exchangers, filters, centrifugal pumps, diaphragm valves, sampling valves and etc.

  Furthermore, we also offer bio fermentation system, emulsifying mixer system, sterile preparation dispensing System，large infusion systems, liquid handling system, CIP systems, modular fabrication project and turnkey project.
