Oscillating Knife Pattern Cutting Machine - China

Features : Automatic Oscillating Knife Fabric Cutting Machine

* Cutting function of oscillation tool: can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber, honeycomb board, PP, PE, PVC, gasket, leather, carpet and mat )

* Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.

* Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted

line.

* Positioning: positioning with cross red line positioning system.

* Punching function: It can punch hole on the material, such as leather, carton, pvc, carpet and mat, etc.

(optional)

* Drawing function with marker pen (optional).

* Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;

* The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.

* Digital cutting machine was designed easy to install, set-up and operate;* Being equipped with infrared sensor and emergency stop devices, guarantees safety;

* Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;

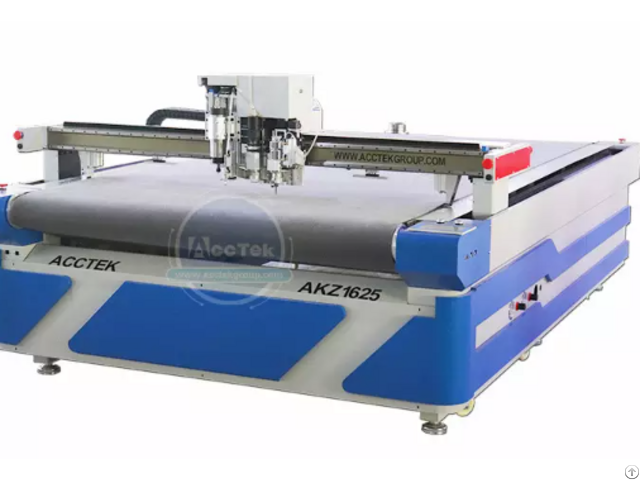

Model

AKZ1625

Max.

Cutting size

1600*2500mm

Power

11KW

Multifunction Tool Head

Oscillating straight knife/Round knife/pneumatic knife/identification roller/ marker pen holder/puching hole device/V-groove cut

tool/CCD camera/tangential knief/ drilling tool/projector/etc.

Security Device

High sensitive infrared induction

Cutting speed

Max.

1200mm/s (can be set up according to different materials)

Movement speed

Maximum 1500mm/s

Cutting material

Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive Sticker, etc.

Cutting thickness

Maximum 20mm (set according to different materials and tools)

Material fixing method

High power vacuum absorption with felt

Repeated positioning accuracy

±0.05mm

Mechanical Precision

Maximum 0.05mm

Drive system

Taiwan Delta servo motor, Taiwan PMI linear guide rails

Control system

Chinese Brand RD control system

Data transmission method

USB port or Ethernet

Suport file

DXF, PLT, AI, SVG, PDF, NC, DST, DSB, etc.

Operation environment

Temperature 0-40℃, Humidity 20%-80%RH

Voltage

380V/220V/50Hz/60Hz
