Opening Machine 400 - China

Opening Machine 400

Opening Machine 500

Application and Features:

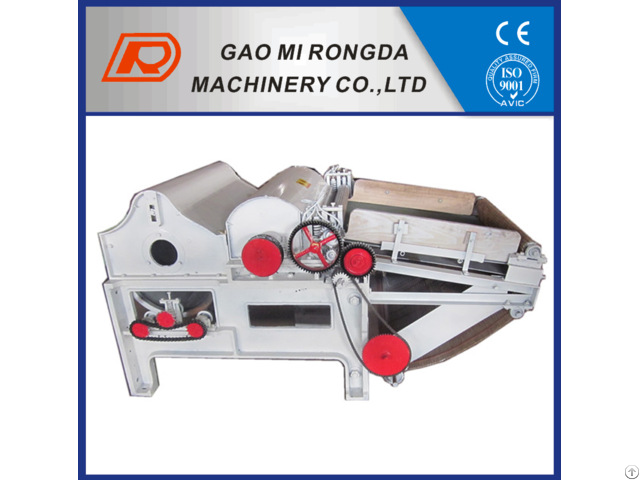

GM400 / GM500 / GM550 / GM600 series opening machine synthesizes kinds of processing machinery characteristics and advanced experience of design and manufacture.

It was identified that the machine basically reached the high quality, low consumption requirements, and have model compact, easy operation, safety .

This machine is a high-speed operation licker centrifugal force generated to exclude the mechanical cotton material impurities and tear loose.

The machine is processing old quilt, scrap yarn, cloth angle, ideal for linen and other items.

Note: There are two types of GM600 Opening Machine: GM600 Iron Opening and GM600 Wooden Opening.

Each type have their own characteristics, the GM600 wooden opening with light weight, and the GM600 iron opening machine’s using life is much longer than the wooden opening machine.

Main Technical Data GM400 GM500 GM550 GM600 (Iron) GM600 (Wooden)

Output (kg / hour) 130-210 130-211 130-212 130-213 130-213

Diameter of Roller (mm) 400 500 550 600 600

Rotational Speed of Roller 1600 r/min 1500 r/min 1400 r/min 1200 r/min 1100 r/min

Diameter of Dust Cage (mm) 500 500 500 500 500

Main Motor (KW) 22 22 22 22 22

Fan (KW) 1.5 1.5 1.5 1.5 1.5

Overall Dimension

(L*W*H) 2250*1500*1150 2300*1500*1150 2400*1500*1150 2550*1500*1330 2800*1600*1350

Weight(kg) 700 800 915 1000 800

Note The output and motor power can be influenced by the different material

Company Contact:

• Posted By: Gaomi Rongda Machinery Co.,Ltd

• Phone: 86-531-66572815

• Address: Chaigou Industrial Park, Gaomi City, Shandong Province, China, Gaomi , Shandong , China

• Email:

• Business Description: Shandong Gaomi Rongda Machinery Co., Ltd. , was established in 1999, located in Gaomi, Shandong Province, which is near to Qingdao sea port, super geographic location for transportation.

  Our company has been engaged in the field of textile waste recycling and processing of mechanical processing and manufacturing.

  Mainly produce textile waste recycling machinery line, which include opening machine and cleaning machine, textile waste cutting machine, baling machine, non-woven fabric making machine, needle punching machine, quilting machine and spare parts.

  Company constantly introduce advanced production technology and new production processes, research and produce high quality, high cost performance textile machinery and equipment, continue to create value for customers.

  In recent years, our products are sold in all over the country, with many domestic well-known textile machinery manufacturers have established long-term good business cooperation relations, and exported to Southeast Asia, East Asia, the Middle East, Africa, Europe and the United States and other places, has established the good sales and service network.

  Adhere to the management benefit, strives for the survival by the quality, reputation and development business philosophy, “customer first, technology innovation, quality first, management development” as the purpose, want to cooperate with new and old customers to create a new future.
