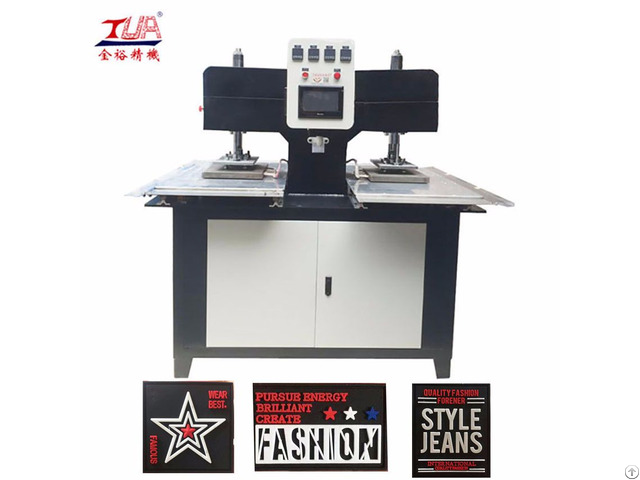

Oil Hydraulic Fabric Patch Embossing Machine - China

The Oil Hydraulic Fabric Patch Embossing Machine Equipment is for producing the silicone label on garment clothes and leather, also can make the cap label, bag logo.

We sale our machine to all over the world, like Portugal, Italy, USA, Mexico, India, Thailand, Indonesia and so on, with the CE certificate.

And we have agents at many country, so don't worry about the after-sale service.

Features about Semi Automatic Logo And Patch Embossing Machine:

1 - Mechanical optional hands move and automatic sliding table control platens fluctuation, timing forming automatic playback, operating more safety

2 - Forming time from 0.1 S to 99.99 H arbitrary adjustable, convenient operation, with counting function

3 - Intelligent PID output temperature controller, temperature fluctuation, a difference of 1 degree more accurate.

Up and down the independent control heating;

4 - Hydraulic system: 68 # anti-wear hydraulic oil, HOB type hydraulic cylinder oil pump Taiwan Shenyu, solenoid valve for Taiwan Changmao.

5 - The pressure1-10 t adjustable; Oil cylinder specifications: diameter 100mm * stroke 120mm * adjustable 50mm, 6 head can be operated at the same time

6 - Machine's Middle for air pressure, the pressure is equipped with a filter gas cup surge, left and right is oil pressure type, pressure adjustable, 6 head can be operated at the same time.

7 - Automatic delay shutdown function, mechanical more energy-efficient, hydraulic motor is 4 Kw, combined double flow pump, to ensure that the four hydraulic cylinder and pressure will not be significantly speed down

8 - Oil cylinder and air cylinder have stroke limit device for producing high quality products to provide better security;

9 - echanical matches a typhoon cooled chiller, as the middle pressure type cooling aluminum provide cold water cooling, cooling temperature from room temperature to 4 degrees arbitrary adjustable

10 - On both sides of the hot platen for flat grinding hard chrome plate to ensure press flat, intermediate cooling plate for aluminum alloy panel

11 - Mechanical have adjustable machine, automatic and manual three function transformation, with water inward and outward.

Company Contact:

• Posted By: Dongguan Jinyu Automation Equipment Co,.Ltd

• Phone: +8613826948928

• Address: Xiangdong Industrial Zone , Dongguan , Guangdong , China

• Email:

• Website: https://www.jinyumachinery.com

• Business Description: mainly dealing with silicone, pvc trademarks gifts making equipment.

  Jinyu researched and developed full automatic dispensing machine, special silicone&rubber dropping , full automatic vulcanizing machine, is the best foundation of the industrial, jinyu equipment huve the fearures of labors saving saving electricity, saving management .

  Jinyu company sincerly look forward to the visiting of all the regular and new customers, Let is develop together.

  In 2000, founded pvc(plastic dropping)trademark equipment.

  In 2002, developed silica gai(silicone)trademark forming machine.

  In 2004, researched and developed hydraulic machine 30T, 50T, 63T, 100T.

  In 2006, researched and developed full automatic dispensing(dropping)equip ment.

  In 2008, researched and developed KPU shoes material making machine.

  In 2010, researched and developed Full automatic production line.
