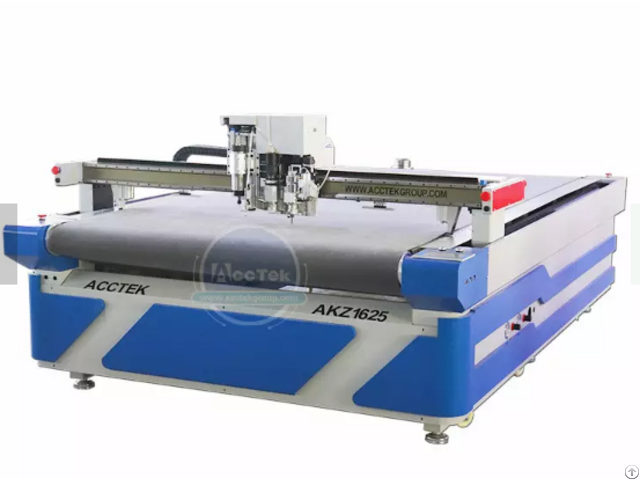

New Oscillating Tangential Knife Cutting 1625 Machine For Leather Fabric Cloth - China
price: 10600.00 Dollar US$
Model
AKZ1625
Max.
Cutting size
1600*2500mm
Power
11 KW
Multifunction Tool Head
Oscillating straight knife/Round knife/pneumatic knife/identification roller/ marker pen holder/puching hole device/V-groove cut
tool/CCD camera/tangential knief/ drilling tool/projector/etc.
Secur ity Device
High sensitive infrared induction
Cutting speed
Max.
1200mm/s (can be set up according to different materials)
Movement speed
Maximum 1500mm/s
Cutting material
Corrugated paper, PVC expansion sheet, kt sheet, thick foam, gray board, paperboard, car sticker, adhesive Sticker, etc.
Cutting thickness
Maximum 20mm (set according to different materials and tools)
Material fixing method
High power vacuum absorption with felt
Repeated positioning accuracy
±0.05mm
Mechani cal Precision
Maximum 0.05mm
Drive system
Taiwan Delta servo motor, Taiwan PMI linear guide rails
Control system
Chinese Brand RD control system
Data transmission method
USB port or Ethernet
Suport file
DXF, PLT, AI, SVG, PDF, NC, DST, DSB, etc.
Operation environment
Temperature 0-40℃, Humidity 20%-80%RH
Voltage
380V/22 0V/50Hz/60Hz
Company Contact:
- Posted By: ACCTEK
- Phone: +086-0531-86160023
- Address: 3-1007, Minghu Plaza, No. 777 Minghu West Street, Jinan City, Shandong , China
- Email:
- Website: https://www.acctekgroup.com
Published date: December 13, 2022 - Modified date: December 13, 2022
- Business Description: CNC Router,Auto Tool Changer Machine,3 Axis CNC Router,5&4 axis CNC Router,CNC Router For Stone,CNC Router For Metal,Multi heads CNC Router;CO2 Laser Machine,Fiber Laser Cutting Machine,Laser Marking Machine;Oscillating Knife
