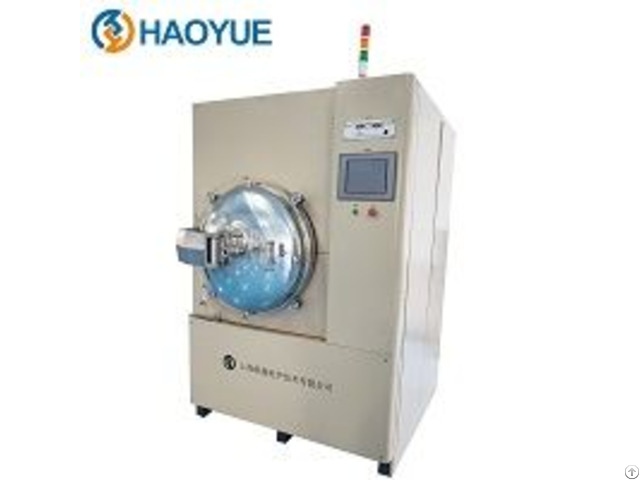

Multifunctional Furnace For Vacuum Hot Pressing Sintering - China

1 - The furnace body adopts the circular vacuum tank design, all of which is made of stainless steel and corrosion resistant.

2 - The design of the circular vacuum furnace ensures good air tightness of the chamber and has high pressure resistance.

3 - Furnace material is made of high-quality poly-crystalline alumina fiber by vacuum adsorption, saving 50% energy and has a uniform temperature field.

4 - Advanced automatic control and reliable safety interlock: Adopt computer to realize automatic control of temperature and action process, PLC safety interlock.

It has sound and light alarm and interlock function such as over-pressure and over-temperature.

Specifications

Multifunctional Furnace for Vacuum Hot Pressing Sintering

Model VHPgr-20/20/30-1600(P2-16 )

Equipment Form Horizontal

Loading method Horizontal side loading

Heating Element Graphite Plate

Max.

Temperature 1600℃

Working Temperature 1500℃

Max.

Power 30KW

Max.

Vacuum 6.7×10-3Pa(6.7×10-5 torr)

Temperature Accuracy ±1℃

Temperature uniformity ±5℃

Thermocouple B-Type

Pressure Rise Rate ≤2.0Pa/h

Gases Nitrogen, Argon

Cooling Water Requirement Water pressure: 0.2~0.3MPa, water flow: 5m3/ h

Power Requirement Three-phase / 380V;

Total power: 50KVA (including vacuum furnace power, vacuum generator power, cooling water power, etc.

)

Technical parameters of hot pressing sintering (the use of vacuum hot pressing)

Max.

Pressure 196KN(20Ton)

Maximum Outside Diameter of Mold φ160x160mm(DxH)

Product Diameter ≤φ80mm

Diameter of metal head φ85mm

Max Displacement 100mm

Pressing Direction Single way pressurization ( bottom )

Technical parameters of vacuum sintering (the use of vacuum sintering)

Maximum Heat Area Size 200x200x300mm(WxHxL)

Effective Zone 160x160x160mm(WxHxL)

Burnt Plate Size 160x160mm(WxL)

Equipment External Dimensions 1500x2000x1500mm(WxHxL)

Equipment Weight 1.78Ton
