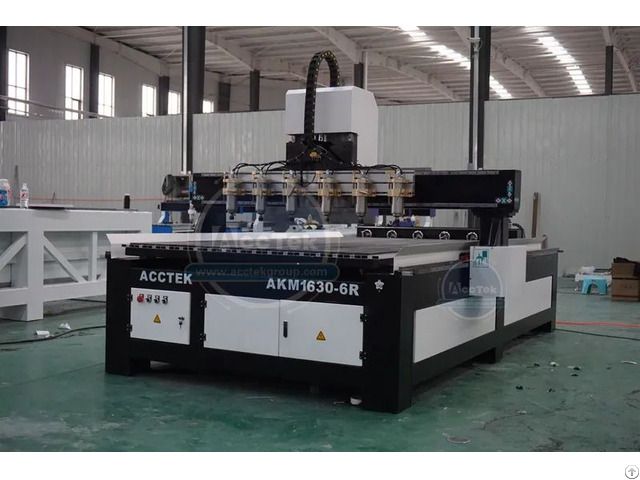

Multi Head Wood Cnc Rotary Engraving Machine Multihead - China
price: 9800.00 Dollar US$
Description Parameter X, Y, Z Working Area 1600x3000x200mm
Control system Mach3/DSP 4 axis Control System
Table Surface T-slot clamping working table
Spindle Changsheng 2.2kw Water Cooling Spindle
X, Y Structure Taiwan HIWIN Linear guide rail and helical rack
Z Structure Ball screw and Taiwan HIWIN Linear guide rail
Driver and Motor Servo driver and motor
Rotary axis Can be customized.
Inverter Fuling Inverter
Max.
Rapid Travel Rate 45000mm/min
Max.
Working Speed 30000mm/min
Spindle Speed 0-24000RPM
Lubrication system Automatic oil pump
Command Language G Code
Computer Interface USB
Collet ER16
X, Y Resolution <0.01mm
Software Compatibility Type3/Artcam Software
Running Environment Temperature 0 - 45 Centigrade
Relative Humidity 30% - 75%
Optional Italy air cooling spindle Japan YASKAWA servo motor and driver Leadshine servo motor and driver Delta inverter DSP/WEIHONG system Vacuum air adsorbing 2 in 1 table
