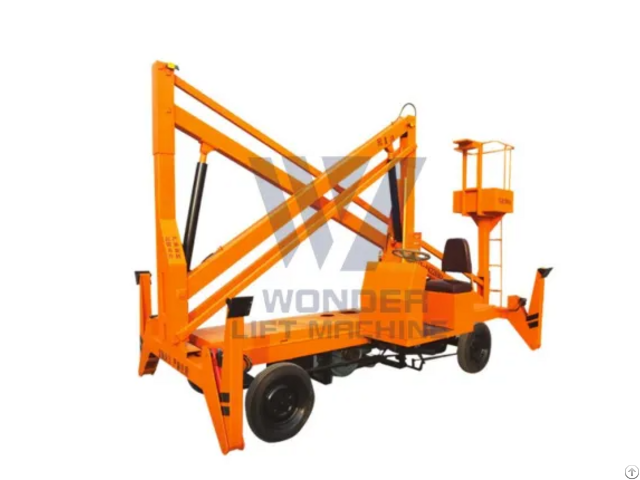

Mobile Boom Lift - China

Lifting height: 8-14m

Working height: 10-16m

Loading capacity: 230KG

Power supply: Battery/Diesel engine The curved arm type aerial work platform is a lifting equipment for aerial work, which can cross obstacles for aerial work, the platform can be rotated 360 degrees, compact structure, flexible steering, and the width of its site can ensure that the equipment can enter the narrow channel and crowded work area.

Standby power unit, can operate the working platform reset.

The product is widely used in stations, docks, street lamp maintenance, public buildings and other industries or fields engaged in aerial work.

It has the characteristics of convenient movement, simple operation, large operation surface, good balance performance, etc., in the case of uneven road surface, it can support four legs at the same time, but also can support one leg, easy to operate and use.

Model Max height

m Working height

m oading capacity

Kg Table size

m Weight

kg Overall size

m

GTK-8 8 10 230 1*0.7 About 1800 3.8*1.8*2.6

GTK-10 10 12 230 1*0.7 About 1800 3.8*1.8*2.6

GTK-12 12 14 230 1*0.7 About 1900 3.8*1.8*2.9

GTK-14 14 16 200 1*0.7 About 2200 5.2*1.8*2.9
